1. Introduction

Polyurethane (PU) elastomers, synthesized via the polyaddition reaction between polyisocyanates and macropolyols, have been a cornerstone in various industries. Their unique chemical structure offers unparalleled flexibility, durability, and resistance to chemicals and impact [1]. These properties have made PU indispensable in applications ranging from foam insulation to lightweight construction, coatings, and more [2]. However, the majority of traditional PUs are derived from petroleum resources, a non-renewable source. This reliance on petroleum not only poses challenges to sustainable development but also raises concerns about the depletion of these resources [3].

In the quest for sustainability, Bio-based Polyurethane (BPU) has emerged as a beacon of hope. Synthesized using renewable biomass such as plant oil, plant protein, and wood fibers, BPUs represent a paradigm shift from traditional petroleum-based PUs [4]. The environmental benefits of BPUs are manifold. Their production generates lower emissions, utilizes sustainable biomass feedstocks, and aligns with global environmental protection principles [5]. Moreover, BPUs offer health and safety benefits. Being derived from renewable biomass and devoid of toxic substances in their production, BPUs pose lower risks to human health and the environment [6].

Yet, the journey of BPUs from research labs to mainstream markets is fraught with challenges. A significant hurdle is their mechanical properties. BPUs often exhibit inferior mechanical properties compared to traditional PUs. Their molecular structure is relatively loose, has a wider molecular weight distribution, and exhibits lower crystallinity [7]. These structural nuances can adversely affect the material’s mechanical properties, limiting its application in sectors that demand robust materials, such as automotive components or building materials [8].

The recyclability and biodegradability of BPUs are other areas that need attention. A majority of BPUs are thermosetting plastics, which are challenging to dissolve and recover using organic solvents [9]. Although they are derived from biological resources, their structure often impedes effective degradation in natural environments [10]. This poses a significant challenge, especially when the world is grappling with plastic pollution and is in dire need of materials that are both high-performing and environmentally friendly [11].

To address the mechanical limitations of BPUs, researchers have explored various methods. These include the use of fillers, cross-linking agents, or blending with other polymers [12]. While these methods have shown promise in enhancing the mechanical properties of BPUs, they often introduce other challenges. For instance, the addition of fillers can compromise the recyclability of the elastomer, while excessive cross-linking can reduce the material’s overall flexibility [13]. Blending with other polymers can lead to phase separation issues, affecting the uniformity and consistency of the resulting material [14]. Calvo-Correas et al. synthesized PU using chain extenders derived from corn and sugar, combined with petroleum-based crosslinkers, to polymerize macrolipids and diisocyanates [10]. Despite the bio-based approach, the resultant PU lacked the anticipated biodegradability, undermining its environmental benefits. Concurrently, Zhao et al. utilized vanillin, obtained from lignin cleavage, as a precursor, modifying it to produce VBD. They then synthesized thermosetting BPU using stage II cyanate and trimethylpropane [2]. While these BPUs exhibited pronounced biodegradability, their recyclability remains contentious. The challenge lies in enhancing the mechanical properties of thermosetting BPUs without compromising recyclability. Historically, research prioritized elastomer strength and elongation over toughness, often overlooking the issue of low bio-content. For instance, Gang et al. synthesized BPU by chemically processing lignin and incorporating nicilin [15]. By introducing 5-20 mol% DV-EA, derived from vanillin dimer and ethanolamine, they enhanced the BPU’s mechanical properties through additional hydrogen bonding. However, the limited inclusion of DV-EA resulted in a persistently low bio-content, hindering the reduction of petroleum-based PU usage. In summary, achieving a balance between mechanical robustness, biodegradability, and recyclability in BPU remains an unresolved challenge in current research.

In light of these challenges, our research introduces a novel approach. Drawing inspiration from recent studies, we explore the potential of a carefully engineered A-B-A triblock polymer mixed with castor oil polyols as the BPU soft segment [16]. This approach aims to enhance the mechanical properties of BPUs, ensuring they are both recyclable and biodegradable. The A block is strategically designed to possess improved compatibility with the hard segment, allowing for efficient adjustment of the regularity of the hard segment. The B block exhibits enhanced crystallinity compared to other components. The presence of crystallinity in the B block of BPU enables it to serve as a physical cross-linking site, thereby enhancing the mechanical properties.

Herein, we employed a strategic approach to synthesize a BPU endowed with optimal characteristics. We utilized the PCL-PEG-PCL triblock polymer, where the PCL block, acting as the ‘A’ segment, modulates the hard segment’s size and imparts biodegradability to the BPU. Conversely, the PEG block, serving as the ‘B’ segment, functions as a physical cross-linking site, constraining the freedom of molecular chain segments. And the bio-based polyol was 1910-S which was obtained from ZheJiangHyaFon New Materials Co., Ltd.. The synthesis process is depicted in Figure 1(a). Initially, 1910s and tri-block polyols with 1,5-Pentane diisocyanate (PEDI) were combined to form a prepolymer. These prepolymers were subsequently blended in a 1:1 ratio. The synthesis was completed using 1,3-propylene glycol as a chain extender. To further investigate the impact of block B’s crystallinity on BPU performance, PTMEG and PDMS were chosen as comparative samples for the PEG block. Comprehensive evaluations, including tensile strength, biodegradation, and recyclability tests, were conducted on the synthesized BPU. The findings revealed that our BPU showcased remarkable toughness, recyclability, and biodegradability, positioning it as a viable contender in the realm of sustainable materials. The structure of our designed BPU is shown in Figure1(b).

Figure 1. Overview of BPU_PEG synthesis and structure. (a) Two-step synthesis routine of BPU_PEG. (b) Schematic illustration of the structure of the triblock polymer-modified BPU_PEG.

2. Materials and Experimental Section

2.1. Materials

Polyethylene glycols (OH-PEG-OH, Mn ≈ 1050, PDI= 1.09) was purchased from Alfa Aesar Co., Ltd. ε-Caprolactone (≥ 99.9%) was purchased from Ju Ren Co., Ltd. Poly(dimethyl siloxane) diols and poly(dimethyl siloxane) diols (HO-PDMS-OH, Mn ≈ 1020 and 1950, PDI = 1.25 and 1.21) were purchased from Tanguitech Co., 1,5-Pentane diisocyanate (PEDI, ≥ 99.8%) was purchased from BASF Co., Ltd. 1,3-Butane diol (PDO, ≥ 99.9%) was purchased from Aladdin Co., Ltd. Benzoyl Chloride (≥ 99.5%) was purchased from Adamas Co., Ltd. Bio-based soft segment 1910-S was synthetized via ZheJiangHyaFon New Materials Co., Ltd.

2.2. Methods

2.2.1. Synthesis of the tri-block co-polymer diols. HO-PCL-PTMEG-PCL-OH, HO-PCL-PEG-PCL-OH and HO-PCL-PDMS-PCL-OH were synthesized via ring-opening polymerization of ε-caprolactone using HO-PTMEG-OH (Mn ≈ 1050, PDI = 1.15), HO-PEG-OH (Mn ≈ 1050, PDI = 1.09) and HO-PDMS-OH (Mn ≈ 1020, PDI = 1.25) as the macromolecular initiators, respectively. Specifically, the macromolecular initiator (50 wt.%), ε-caprolactone (50 wt.%) and additional n-butyl titanate (TBT, 25 ppm) were fed into a glass reactor equipped with a vacuum pump and oil bath under nitrogen atmosphere at room temperature. With stirring, the system was allowed to react at 120 ℃ for 17 h, followed by application of vacuum under 150 mbar and 135 ℃ for 3 h. The final product was cooled down to 80 ℃, filtered, packaged and sampled for determination. The molecular structure and weight of HO-PCL-PEG-PCL-OH, HO-PCL-PTMEG-PCL-OH, HO-PCL-PDMS-PCL-OH and 1910-S are presented in Figure S1 and S2 to demonstrate successful synthesis.

2.2.2. Synthesis of BPU samples. BPU based on different A-B-A triblock polymer blended with castor oil as soft segments were prepared following a systematic approach, as illustrated in Scheme 1(b). Taking BPUPCL-PEG-PCL as an example, the detailed steps of BPU synthesis are introduced in detail. In this study, a two-step approach was employed to successfully synthesise BPU. To begin with, appropriate counterparts of PCL-PEG-PCL and castor oil polyols were subjected to a blocking reaction with PEDI, resulting in the formation of prepolymers. The experimental protocol entails conducting the reaction at a temperature of 85 °C for 6 hours, while ensuring an inert atmosphere of argon is maintained throughout the process. Subsequently, the prepolymer comprising of PCL-PEG-PCL and castor oil polyol was homogeneously blended in a precise mass ratio of 1:1. Subsequently, a certain amount of chain extender PDO was introduced into the blended prepolymer matrix. To achieve effective mixing and eliminate any potential air bubbles or dissolved gas, a Flacktec speedmixer operating at 2500 rpm was employed for 1 minute. Subsequently, the mixture was poured into the preheated molds and maintained at 110 ℃ for 14 hour, followed by controlled cooling to below 60 ℃. The resulting BPU samples were then meticulously demolded using gloves to prevent any damage. The BPU samples were named as BPUx, where x represents the B block of triblock copolymer. Specially, BPU_1910-S represents the all the soft segments of BPU are castor oil polyols.

2.3. Characterization

2.3.1. Nuclear Magnetic Resonance Spectroscopy (NMR). ¹H nuclear magnetic resonance spectra were obtained with a Bruker AV400 MHz NMR spectrometer at 298 K. Samples (3-5 mg) were dissolved in 0.55 mL of CDCl₃, with tetramethyl silane (TMS) as the standard.

2.3.2. Gel Permeation Chromatography (GPC). GPC (Agilent/Wyatt 1260) was used to determine the molecular weights (Mw.) and PDI of the BPUs at 30 °C. Anhydrous N,N-Dimethylformamide (DMF) for HO-PEG-OH and HO-PCL-PEG-PCL-OH, anhydrous Tetrahydrofuran (THF) for HO-PCL-PDMS-PCL-OH was used as the elution phase at a flow rate of 1.0 mL/min, respectively. Narrow polyethylene oxide standards with molecular weights ranging from 550 to 100,000 g/mol were used to calibrate the system.

2.3.3. Attenuated Total internal Reflection Infrared Spectroscopy (ATR-IR). The BPUs were characterized by ATR-IR (Thermofisher Nicolet 6700) using a KRS-5 crystal with a 2.4 refractive index at a 45° angle. The resolution was 2.0 cm^-1, and 64 scans were conducted.

2.3.4. Differential Scanning Calorimetry (DSC). The thermal attributes of the soft and hard segments, as well as the synthesized BPUs, were examined using DSC (Mettler Toledo 822e). Samples (~5-10 mg) were enclosed in aluminum pans and purged with nitrogen at 10 mL/min. Initially, they were heated from ambient temperature to 220 ℃, erasing thermal history. They were then cooled to -90 ℃ and reheated to 220 ℃, with all tests conducted at 10 ℃/min.

2.3.5. X-ray diffraction (XRD). XRD test (Bruker, D8) was carried out to characterize the crystallization of elastomer.

2.3.6. Polarized Optical Microscope (POM). For POM studies, BPU samples (50 mg/mL, DMF) were cast into PTFE molds. Controlled evaporation yielded films (100 μm) displaying spherulitic structures. The equipment utilized was a Nanoscope IV, Dimension 3100 from Digital Instruments.

2.3.7. Tensile Experiments. Specimens (1×2×12 mm, n = 5) of each PU were prepared and stretched to failure at a rate of 10 mm/min using an Instron 5966 uniaxial tensile tester equipped with a 1 kN load cell. The elastic modulus, tensile strength, and ultimate elongation at break were calculated from the resultant engineering stress/strain curves. A secant modulus based on 2% strain was calculated for the elastic modulus and subsequently referred to as the modulus.

2.3.8. In Vitro Degradation Study. In vitro degradation tests for the samples were conducted in 0.025 M phosphate-buffered saline (PBS; pH 7.4) at 37 ℃. Disk-shaped polymeric specimens, approximately 4.5 mm in diameter and 1 mm thick, were extracted from a compression-molded sheet. These specimens were submerged in tubes containing PBS, both enzyme-free (10 mL) and with P. lipase (10 mL, 1 mg/mL). They were then placed in an incubator shaker at 100 rpm and 37 °C. The PBS was refreshed every 3 days. After a set duration, samples were retrieved, rinsed, and vacuum-dried at ambient temperature until a consistent weight was achieved for evaluation. The weight loss percentage was determined as:

% weight loss = \( \frac{Mi-Mf}{Mi} \) × 100

where Mi represents the sample’s initial weight and Mf denotes its constant weight post-degradation at varying time intervals with PBS hydrolysis.

2.3.9. In Vitro Cytotoxicity. To measure the viability of myoblast cells on the synthesized polymeric samples, an MTT assay was conducted. Cells were cultured on sterilized samples in 24-well plates at a density of 3 × 10^3 cells/well and incubated for 5 days in a 5% CO₂ environment at 37 °C with 95% humidity. After incubation, the medium was replaced with 0.5 mg of MTT/mL reagent in DMEM without serum. The enzyme mitochondrial succinate dehydrogenase in active cells converts the yellow MTT to blue-violet formazan crystals. This conversion rate corresponds to the number of viable cells on the sample. Post 3-hour incubation at 37 °C, excess MTT was discarded, and formazan crystals were dissolved using 200 μL of DMSO. The optical density (OD) was measured using an ELISA reader (iMark, Biorad Laboratories, India) at 595 nm. Viability percentage was also determined as follows:

% cell viability = \( \frac{OD of the sample}{OD of the control} \) × 100

3. Results and Discussion

3.1. Synthesis Results of BPU

Figure 2. Characterization of BPUs using GPC and ATR-IR techniques. (a) GPC charts of BPU_PTMEG, BPU_PDMS, BPU_PEG, and BPU_1910-S with DMF as the eluent phase. (b) ATR-IR spectra in the range from 1500 to 3500 cm^-1 for the BPUs.

Figure 2(a) is the results of the GPC test for four different samples: BPU_PTMEG, BPU_PDMS, BPU_PEG and BPU_1910-s. As shown in Figure 2(a), BPU_PTMEG has a molecular weight for about 12.3 kDal; BPU_PDMS has a molecular weight for about 10.9 kDal; BPU_PEG has molecular weight for about 10.7 kDal; BPU_1910-S has a molecular weight for about10.2 kDal. All of the datas are around 10 kDal, which indicates the synthesis process gains success. Besides, the PDI for all four samples are around 2.32. The similarities on PDI and molecular weight make sure that these two do not generate influence on the difference between mechanical or other properties of the BPU. AFR-IR spectras of the BPU samples are depicted in Figure 2(b), spanning wavenumbers from 1500 to 3500 cm^-1. Notably, the absence of a stretching vibration near 2270 cm^-1 confirms the lack of residual isocyanate groups across all BPU samples, suggesting a complete reaction during synthesis. The presence of stretching vibrations within the 3200-3500 cm^-1 and 1655-1760 cm^-1 ranges further confirms the existence of -NH and -C=O functional groups, respectively, underscoring the successful synthesis of the BPU samples.

3.2. Analysis of BPU Structure

Figure 3. Analysis of -C=O group absorption in various morphological structures. ATR-IR spectra in the range of 1655 - 1775 cm^-1 with signals attributed to the absorption peak of -C=O groups.

The ATR-IR spectra, particularly between 1655 to 1775 cm-1, were examined to identify signals from four unique -C=O groups. These include: 1. Free carbonyl groups at 1732-1775 cm^-1 (Band I).2. Hydrogen-bonded -C=O at the hard/soft domain interface at 1695-1760 cm^-1 (Band II).3. Hydrogen-bonded -C=O in ordered hard domains at 1680-1735 cm^-1 (Band III).4. Hydrogen-bonded -C=O in the polyester polyol of soft domains at 1655-1710 cm^–1 (Band IV). (shown in Figure 3)¹⁶. Upon comparison with BPU_1910-S, which possesses pure castor oil soft chain segments, BPU_PEG’s absorption peak at Band II reveals a heightened area percentage. Conversely, its absorption peak at Band III displays a diminished area percentage, suggesting a more structured presence of hard segments in BPU_PEG. The absorption peak of BPU_PTMEG at Band II exhibits a marked increase in area percentage, while its Band III peak shows a significant decrease. This trend is attributed to the declining crystallinity of the B block, which weakens its molecular chain binding, thereby reducing BPU_PTMEG’s hard segment regularity and resulting in a more relaxed system structure (shown in SI Table S1).

Interestingly, despite PDMS having the lowest crystallinity, BPU_PDMS’s absorption peak at Band III, when compared to BPU_PTMEG, shows an increase. This anomaly arises from the pronounced thermodynamic incompatibility between PU hard segments and PDMS. Spatial extrusion fosters an increase in the ordered structure of hard segments. However, the percentage of the ordered structure induced by spatial extrusion remains limited, proving insufficient to substantially enhance the mechanical attributes of BPU.

These findings underscore the pivotal role of introducing A-B-A triblock polyols into BPU as select soft segments. The B block, with its superior crystallinity, can restrict the mobility of BPU molecular chains. This limitation mitigates the structural disruption caused by biological polyols, thereby bolstering the orderliness of PU hard segments.

Figure 4. Thermal analysis of BPUs using DSC. DSC spectra of BPU_PTMEG, BPU_PDMS, BPU_PEG, and BPU_1910-S with temperature ranging from -90 to 220 ℃.

Figure 4 delineates the DSC results for the four BPU samples, with temperatures spanning from -90 to 220 ℃. Notably, among the quartet, only BPU_PEG exhibits a crystallized peak at 29 ℃, attributable to the inherent crystallinity of the PEG block⁸. The PEG block, renowned for its pronounced crystallinity, can undergo crystallization at ambient temperatures, a feat unattainable by other B blocks within the A-B-A triblock framework.

Furthermore, both BPU_PDMS and BPU_PEG manifest a melting peak at elevated temperatures, indicative of the hard segments within these samples. In contrast, BPU_PTMEG and BPU_1910-S, owing to the disarray within their hard segments and the perturbations introduced by branching in the BPU, lack a discernible melting peak.

The mechanisms underpinning the orderly arrangement of hard segments in BPU_PEG and BPU_PDMS diverge. In the case of BPU_PDMS, the pronounced thermodynamic incompatibility between PDMS and its hard segment results in spatial repulsion between the two. Consequently, hard segments are spatially constrained, fostering a more organized arrangement. For BPU_PEG, the PEG block’s robust crystallinity bolsters the structural stability of its hard segment, mitigating the disruptions posed by the branched chains of bio-based polyols. Additionally, the PCL, employed as a linker between the block and BPU_PEG, further augments structural stability, rendering the hard segment of BPU_PEG more regimented. Collectively, these findings underscore the efficacy of our approach in modulating the ordered hard segment within BPU_PEG.

Figure 5. Microscopic and structural analysis of BPUs. (a) POM images of BPU_PTMEG, BPU_PDMS, BPU_PEG, and BPU_1910-S. (b) WAXS spectra of BPU_PTMEG, BPU_PDMS, BPU_PEG, and BPU_1910-S.

Figure 5(a) presents the POM results, with arrows highlighting the hard segment crystal structures of BPU. Notably, the hard segment crystal structure of BPU_1910-S appears somewhat dispersed. This is attributed to the branched chain of 1910-S disrupting the hydrogen bond interactions within the hard segment, thereby diminishing its organized arrangement. The crystalline structure dimensions for BPU_PEG, BPU_PTMEG, and BPU_PDMS are 4 microns, 7 microns, and 12 microns, respectively. The compactness of BPU_PEG’s structure arises from the PEG block crystallization, which curtails molecular chain mobility and minimizes the structural perturbations caused by the branched chains of bio-based polyols. Furthermore, the PCL block refines the structure of the BPU_PEG hard segment, facilitating its even distribution within the BPU_PEG system. These POM findings validate our strategic approach: employing PCL-PEG-PCL polyol as the soft segment in BPU_PEG ensures that the PCL can standardize the hard segment’s dimensions, achieving a consistent distribution. Concurrently, the crystalline nature of the PEG block augments the sample’s rigidity.

To discern the nanocrystalline structures within the BPU samples, WAXS analyses were conducted and the results are shown in Figure 5(b). BPU_PEG exhibited a distinct crystalline peak at 21.5°, characteristic of both the BPU hard segment and PEG. Compared to its counterparts, the crystalline peak of BPU_PEG at 21.5° is markedly more pronounced and intense. As the crystallinity of the B block in the A-B-A triblock polyol diminishes, the peaks for BPU_PTMEG and BPU_PDMS at 21.5° become increasingly subdued. This trend underscores the presence of crystalline PEG blocks within the BPU_PEG system and the enhanced orderliness of its hard segment. A decline in the crystallinity of the B block in the A-B-A triblock copolymer results in a more disorganized hard segment arrangement in BPU_PEG, BPU_PTMEG, and BPU_1910-S. This, in turn, reduces crystallization levels, leading to the attenuation of the BPU’s crystalline peak at 21.5°.

3.3. Performance of BPU Properties

Figure 6. Mechanical properties and demonstration of BPUs. (a) Stress-strain curves of BPU_PTMEG, BPU_PDMS, BPU_PEG, and BPU_1910-S. (b) Photographs showcasing the strength of BPU_PEG by holding two 1kg dumbbell pieces.

The results of the stress-strain test are shown in Figure 6. It can be observed from Figure 6(a) that the breaking stress of BPU_PEG is 7.9Mpa, and the fracture strain is 447%. In comparison to BPU_1910-S, BPU_PEG’s mechanical attributes have seen a substantial enhancement. Specifically, the fracture stress has surged from 0.4 MPa to 7.9 MPa, and the fracture strain has escalated from 62% to 447%. This improvement correlates with the heightened crystallinity of the B block in the A-B-A triblock polyol observed in other BPU samples (shown in SI Table S2). Figure 6(b) shows that the mechanical performance of BPU_PEG is good enough to hold two 1kg dumbbell pieces.

Among the samples tested, BPU_PEG stands out with its superior mechanical properties. This can be attributed to the reinforcing effect of the PEG crystalline phase in BPU_PEG, which also functions as a physical cross-linking juncture. Furthermore, the uniform distribution and optimal sizing of hard segments in BPU_PEG contribute to its robustness. The combined resistance offered by the PEG crystalline phase and the organized hard segments in BPU_PEG effectively counter external stresses, thereby amplifying its mechanical resilience.

However, as the crystallinity of the B block in the A-B-A triblock polyol diminishes, there’s a discernible decline in the orderly arrangement of hard segments across BPUPEG, BPUPTMEG, and BPU1910-S. The diminishing role of the B block as a physical cross-linking nexus results in the tapering mechanical properties of BPU_PTMEG and BPU_PDMS.

In essence, the robust mechanical attributes of BPU_PEG underscore the efficacy of our design approach. By integrating A-B-A triblock polyols into BPU, where block A is represented by PCL (modulating the hard segment size of BPU), and adopting a highly crystalline PEG block, we’ve achieved a dual benefit. The PEG block not only serves as an interlinking bridge between blocks but also fortifies molecular chains. This minimizes the perturbations caused by the 1910-S branching to the BPU hard segments, enhancing their organization. Consequently, this intricate mechanism bolsters the mechanical prowess of BPU_PEG.

Figure 7. Degradation analysis and biocompatibility assessment of BPUs. (a) Variation of the weight loss as a function of the degradation time for BPU_PTMEG, BPU_PDMS, BPU_PEG, and BPU_1910-S. (b) MTT assay plot illustrating the proliferation of HE cells in the presence of various BPU hydrolyzed extracts.

Figure 7 presents the biodegradation results for the BPU samples. As anticipated, all BPUs exhibited biodegradable characteristics. However, the biodegradation rates among the four BPUs were distinct. BPU_PTMEG and BPU_1910-S showcased the most rapid biodegradation rates, retaining merely 60% of their original weight after a 14-day hydrolysis period. In contrast, BPU_PEG demonstrated the most gradual hydrolysis rate, preserving 90% of its initial weight over the same duration.

The accelerated hydrolysis observed in BPU_PTMEG and BPU_1910-S can be attributed to their less compact structures, facilitating the easy penetration of water molecules and thereby hastening the hydrolysis process. Conversely, the crystalline phase of PEG in BPU_PEG acts as a barrier, limiting the ingress of water molecules and subsequently decelerating the hydrolysis rate. The PDMS block in BPU_PDMS, being highly hydrophobic, offers resistance against the hydrolytic action on the PCL blocks, significantly diminishing the hydrolysis rate.

To assess the potential toxicity of the degradation products, the hydrolysate from BPU_PEG underwent MTT testing. The results were encouraging, revealing negligible cytotoxicity with a cell survival rate of 99.8%.

In conclusion, all four BPUs manifest commendable biodegradability. Notably, the degradation byproducts of BPU_PEG are non-toxic and can be safely released into the environment. This underscores BPU_PEG’s potential as an environmentally friendly material, aligning with future sustainability goals centered on carbon conservation and emission reduction.

Figure 8. Recycling methodology and mechanical comparison of the elastomer. (a) Recycling process for the elastomer: i) Segmentation of the elastomer. ii) Dissolution in DMF and spreading on a Petri dish. iii) Subsequent recycling of the elastomer. (b) Stress-strain graphs comparing the mechanical properties of the original and recycled elastomer after the initial cutting/recycling cycle.

The recyclability of BPU was evaluated by dissecting the elastomer and subsequently dissolving it in DMF. The stress-strain data post the initial cycle is depicted in Figure 8(b). As observed from the experimental results in Figure 8(a), BPU_PEG fragments, when dissolved in DMF, can be reconstituted into a diaphragm by recasting them into the mold. Further tensile tests, as presented in Figure 8(b), revealed that the mechanical attributes of the reformed BPU_PEG closely mirrored those of the pristine material. This inherent recyclability stems from BPU_PEG’s classification as a thermoplastic BPU, which allows it to be solubilized in organic solvents like DMF. Upon the evaporation of the solvent, BPU_PEG can be reconstituted, retaining its mechanical integrity throughout the recycling process.

In essence, BPU_PEG not only boasts superior mechanical and biodegradable properties but also exemplifies recyclability. This positions it as a prime candidate for BPU materials, aligning with future sustainability objectives centered on carbon conservation and emission mitigation.

4. Conclusion

In the realm of sustainable materials, BPUs have emerged as a promising alternative to their petroleum-based counterparts. This study, centered on BPU_PEG, has illuminated its potential as a frontrunner in this category.

Our investigations, through GPC and ATR-IR analyses, confirmed the unique molecular structure and uniformity of BPU_PEG. This uniformity is pivotal, translating directly to its enhanced mechanical properties. DSC, POM, and WAXS tests further highlighted BPU_PEG’s crystalline nature, with the PEG block’s crystallinity playing a dual role: imparting strength and acting as a physical cross-linking point.

Mechanical resilience, however, is just one facet of BPU_PEG’s appeal. Our biodegradation experiments showcased its commendable environmental compatibility, ensuring that post-functional life, BPU_PEG can reintegrate into the environment without adverse effects. Adding to its eco-friendly credentials is its recyclability. BPU_PEG can be dissolved, reformed, and reused without compromising its inherent properties, emphasizing its potential for sustainable applications.

Furthermore, the hydrolysate tests vouched for the non-toxic nature of BPU_PEG’s degradation products, an essential attribute for any material intended for broader applications.

Looking ahead, the application prospects for BPU_PEG are vast and varied. Given its unique combination of mechanical strength, biodegradability, and recyclability, BPU_PEG is poised to revolutionize industries ranging from automotive to medical. Its potential in the packaging sector, where the demand for sustainable yet durable materials is ever-growing, is particularly noteworthy. In the medical field, BPU_PEG’s biocompatibility could lead to its use in implants or drug delivery systems. Moreover, in sectors like construction and textiles, BPU_PEG’s resilience and environmental friendliness could redefine material standards

In essence, BPU_PEG stands out not just for its mechanical prowess but also for its environmental compatibility. It embodies the future of sustainable materials, balancing performance with eco-friendliness, and sets a benchmark for future research in the domain of bio-based materials.

5. Supplementary Materials: Characterization Methods

5.1. Nuclear Magnetic Resonance Spectroscopy (NMR)

High resolution ¹H-NMR spectra of HO-PCL-PEG-PCL-OH, HO-PCL-PTMEG-PCL-OH and HO-PCL-PDMS-PCL-OH were recorded using a Bruker 400 MHz spectrometer, respectively. The samples were dissolved in deuterated chloroform (CDCl₃) at a concentration of up to 10 wt.%. Chemical shifts were referenced to tetramethylsilane (TMS) as the standard.

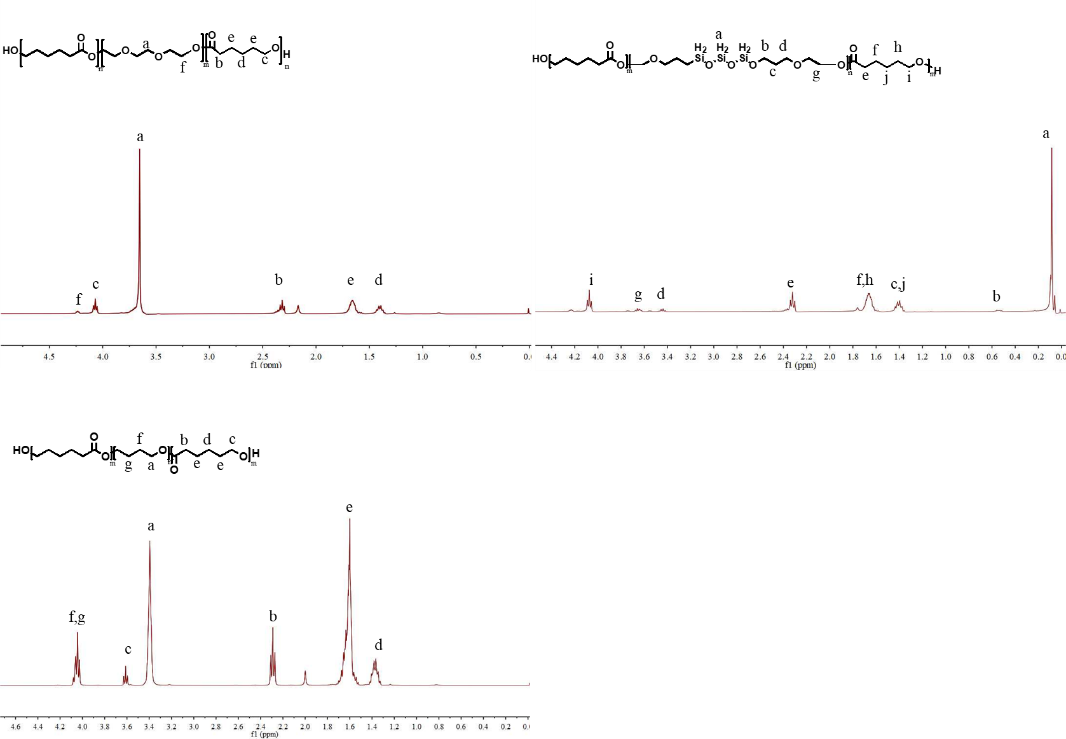

Figure S1. ¹H-NMR spectra of the tri-block co-polymer diols of HO-PCL-PEG-PCL-OH, HO-PCL-PTMEG-PCL-OH and HO-PCL-PDMS-PCL-OH in CDCl₃ at room temperature.

5.2. Gel Permeation Chromatography (GPC)

GPC (Agilent/Wyatt 1260) was used to determine the molecular weights (M_w.) and PDI of the polyurethanes at 30 °C. Anhydrous N,N-Dimethylformamide (DMF) for 1910-S, HO-PCL-PTMEG-PCL-OH and HO-PCL-PEG-PCL-OH, anhydrous Tetrahydrofuran (THF) for HO-PCL-PDMS-PCL-OH were used as the elution phase at a flow rate of 1.0 mL/min, respectively. Narrow polyethylene oxide standards with molecular weights ranging from 550 to 100,000 g/mol were used to calibrate the system.

Figure S2. GPC charts of the macromolecular initiators and the corresponding tri-block co-polymer diols in DMF or THF.

5.3. Attenuated Total internal Reflection Infrared Spectroscopy (ATR-IR)

In the ATR-IR spectra, non-hydrogen-bonded (free) carbonyl groups appear at 1732 - 1770 cm^-1 (Band I), hydrogen-bonded carbonyl groups in disordered conformations appears at 1695 - 1760 cm^-1 (Band II), hydrogen-bonded carbonyl groups in ordered hard domains can be observed at 1680 - 1735 cm^-1 (Band III) and hydrogen-bonded carbonyl groups in polyester polyol in ordered soft domains appears at 1655-1710 cm^-1 (Band IV).¹ The different bands in the ATR-IR spectra were assigned and the area percentages (area%) of the corresponding bands were calculated and summarized in Table S1.

Table S1. The calculated area percentages (area%) of the corresponding bands in the ATR-IR spectra for each of the BPU.

5.4. Tensile Experiments

Table S2. Summary of the tensile stress and elongation at break for each of the BPU (n = 5).
