1. Introduction

As the global aviation industry advances rapidly, the flight control systems of commercial aircraft have experienced substantial technological progress. The evolution from early mechanical systems to contemporary electronic control systems has not only enhanced flight safety and operational precision but has also driven the broader development of aviation technology. Given that flight control systems are integral to commercial aircraft, they directly influence flight stability, efficiency, and safety. Thus, their technological advancements and development trends are of considerable importance. This paper aims to provide a systematic analysis of the latest advancements and future trends in commercial aircraft flight control systems. It begins with an overview of the fundamental concepts and historical evolution of these systems, providing essential background on the current technological landscape. The discussion then focuses on key areas including advancements in autopilot systems, innovations in FCS, the application of adaptive and intelligent control algorithms, and the role of fault-tolerant design in enhancing flight safety. In addition, it examines the integration of flight control systems with other critical systems, such as navigation and communication, as well as the performance improvements resulting from system optimization. In the future, the potential impacts of emerging technologies, such as artificial intelligence (AI), and advanced materials, on flight control systems will be investigated. Through a comprehensive analysis, the paper seeks to provide insights into the evolution and future direction of flight control systems for commercial aircraft.

2. Overview of Commercial Aircraft Flight Control Systems

Flight control systems (FCS) are critical for regulating a commercial aircraft’s attitude and trajectory, thereby ensuring stable and safe flight, which consist of an array of components, including sensors, controllers, actuators, and communication buses, as demonstrated in Figure 1 [1]. They work together to monitor and adjust control surfaces such as ailerons, elevators, and rudders in real time. The evolution of FCS has moved from mechanical controls to electronic and digital technologies [2]. In the early stages, mechanical systems were controlled using physical connections. However, the advent of electronic flight control systems marked a significant shift towards the integration of electronic sensors and computers, leading to notable improvements in accuracy and reliability. The contemporary digital flight control systems feature advanced automation, multi-level feedback control, as well as fault detection, with communication standards such as ARINC 429 and CAN bus ensuring robust data exchange and system integrity [3].

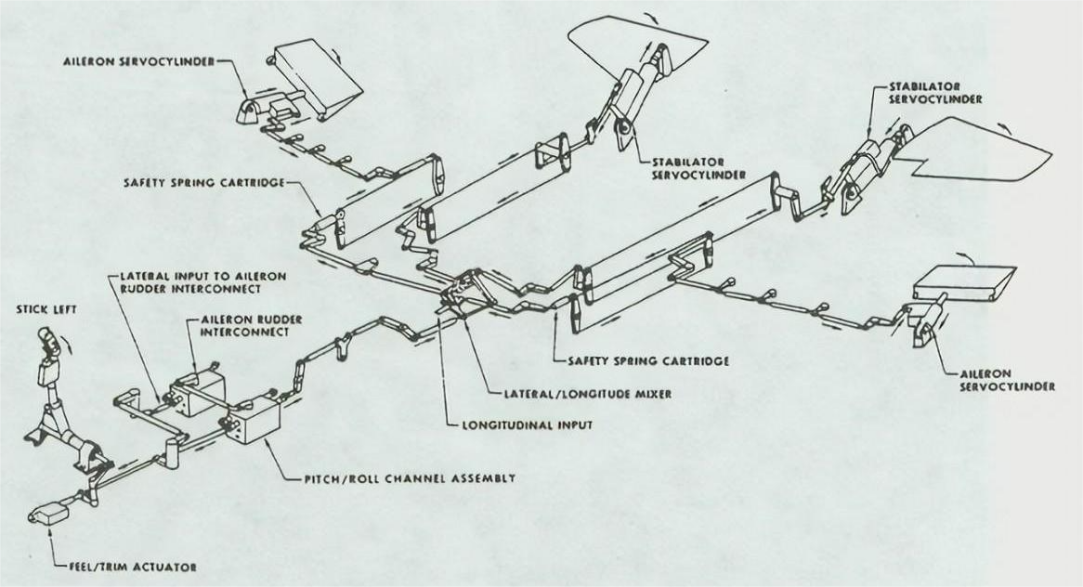

Figure 1. Flight Control System [1]

Airbus and Boeing have each made significant advancements in flight control systems. Airbus's Fly-By-Wire (FBW) system replaces mechanical linkages with electronic signals for precise control and integrates Flight Management Systems (FMS) for operational efficiency. Boeing focuses on combining manual control with automation, offering a more intuitive flying experience, while also emphasizing redundancy and fault detection. The progression from mechanical to digital systems reflects ongoing innovation by major manufacturers [4].

3. Technological Advancements and System Integration

3.1. Advances in Autopilot Systems and Flight Control Systems

The operation of autopilot systems in modern commercial aircraft mainly rely on key technologies, such as flight control computers, sensor systems, and actuators. Modern autopilot systems employ a number of advanced electronic sensors and real-time data processing to automatically perform and adjust flight operations, including altitude maintenance, heading control, and speed management. They integrate data from various sensors, such as barometric altimeters, radar, and GPS, to continuously adjust the aircraft’s flight status, ensuring precise control. Additionally, enhanced autopilot systems can automatically optimize flight paths based on flight plans and environmental conditions, improving overall flight efficiency.

The evolution of Flight Control Systems (FCS) has progressed from basic mechanical controls to advanced electronic and digital systems. Early FCS provided fundamental control of aircraft through manual manipulation of flight surfaces and basic stability augmentation. As technology advanced, systems incorporated real-time monitoring and adaptive control. Modern FCS now include complex flight management capabilities, integrating meteorological data, air traffic information, and aircraft performance parameters to automatically adjust flight plans, optimize fuel consumption, and enhance efficiency. Contemporary systems use digital control for precise and reliable flight management. A key advancement is Fly-By-Wire (FBW) technology, as shown in Figure 2 [5]. Unlike traditional mechanical linkages, FBW systems use electronic signals for control, improving precision and safety while automating flight operations. This development enhances control accuracy, simplifies pilot operations, and improves the overall flying experience.

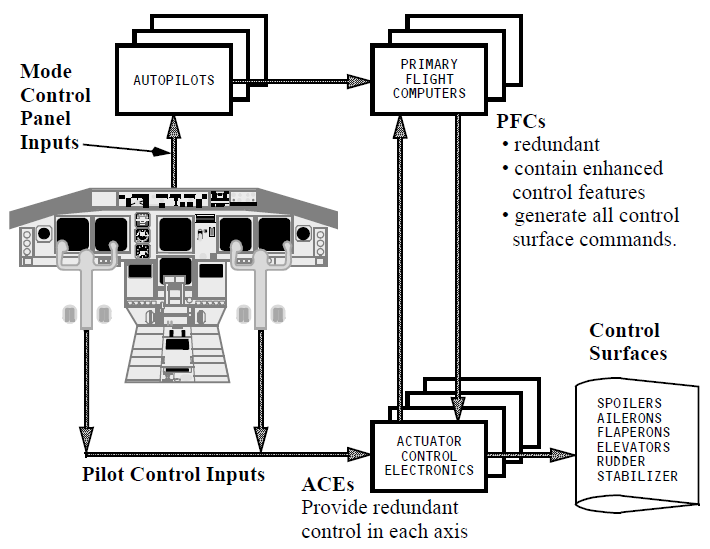

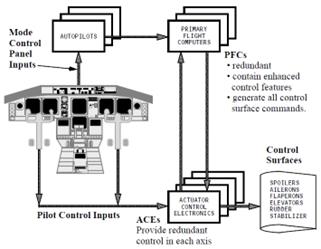

Figure 2. The Schematic Drawing of Fly-by-Wire Control System [5]

3.2. Innovations in Flight Control Algorithms and Adaptive Control

Adaptive control algorithms play a crucial role in modern flight control systems. These algorithms can dynamically adjust control strategies to respond to changes in the flight environment and system uncertainties. For instance, in the event of turbulence or system malfunctions, adaptive control algorithms can automatically adjust control inputs to maintain flight stability. By estimating and adjusting parameters in real time, these algorithms enhance system robustness and adaptability, thereby improving flight performance and safety. The introduction of fuzzy control and intelligent algorithms enables flight control systems to handle more complex and nonlinear flight scenarios. Fuzzy control algorithms offer a flexible control approach by describing flight states with fuzzy logic and rule-based reasoning, making them suitable for managing uncertainties and complex environments. Intelligent algorithms, such as machine learning and neural networks, are also applied in flight control systems to improve adaptability and prediction accuracy by learning and optimizing control strategies. These technologies make flight control systems more efficient and reliable in handling dynamic flight conditions and abnormal situations [6].

3.3. Fault Tolerance and Safety Enhancements

Modern flight control systems utilize a variety of advanced technologies to ensure rapid response and maintain flight safety in the event of a failure. Fault detection involves real-time monitoring, data analysis, and diagnostic tools that identify anomalies through continuous data streams and system status monitoring. For example, these systems monitor sensor outputs, control commands, and flight data, comparing them to predefined normal ranges. When deviations are detected, the system generates alerts and initiates automatic diagnostic procedures to identify the fault’s nature and location. For fault handling, redundancy design and backup systems are core strategies. Modern flight control systems often use dual or even triple redundancy designs to ensure high availability of critical components. This approach means that each essential function module includes backup systems or hardware. When a primary system fails, the backup system seamlessly takes over, ensuring that flight control remains uninterrupted. For instance, Fly-By-Wire might feature multiple independent control computers and communication channels, with backup computers immediately assuming control if the main computer fails. Additionally, real-time fault handling mechanisms execute predefined fault isolation and recovery procedures, minimizing the impact of faults on flight safety.

Recent developments in flight control system safety design focus on multi-layered safety mechanisms that enhance overall system reliability. These mechanisms include system redundancy, fault isolation, and real-time monitoring, all working together to improve system safety. System redundancy is a fundamental strategy for enhancing flight control system safety. Modern systems use dual or triple redundancy, incorporating multiple independent control units and backup devices. This design ensures that if one control unit fails, the backup system can promptly take over, maintaining normal system operation. For example, aircraft control computers typically have multiple independent units to ensure that a backup computer can take over if the main computer fails. Fault isolation technology plays a crucial role in safety design by quickly segregating faulty areas from normal operations, preventing faults from affecting the entire system. For instance, modern systems can automatically switch to backup systems or use fault isolation modules to isolate faulty components, ensuring that the rest of the system continues to function properly. Real-time monitoring and data analysis enhance the ability to detect potential safety threats. High-performance data acquisition and analysis tools track system status and flight data continuously, identifying potential issues promptly. Continuous data analysis helps predict and recognize fault patterns, enabling preventive measures. Flight Data Recorders (FDR) and onboard Health Management Systems (HMDS) monitor flight data in real-time, automatically alerting when anomalies are detected and helping pilots and maintenance personnel address issues quickly [7].

3.4. System Integration and Optimization

Effective integration of flight control systems with other aircraft systems is pivotal for maximizing overall performance. This integration encompasses the synthesis of flight control systems with navigation, communication, and propulsion systems, facilitating seamless data exchange and coordination to enhance operational efficiency and system coherence. For example, integration with the navigation system allows the flight control system to receive route data in real time and automatically adjust flight parameters. Integration with communication systems ensures timely information exchange between pilots and ground control centers. Integrating navigation systems enables the flight control system to plan and adjust flight paths with greater accuracy. Modern navigation systems provide precise positional data and route planning support, interacting in real time with the flight control system to adjust flight paths in response to weather changes, air traffic conditions, or other flight requirements. This integration improves flight efficiency, optimizes fuel consumption, and enhances on-time performance [8].

The integration of flight control systems with communication systems enhances operational coordination and safety. By incorporating advanced communication technologies, such as satellite communications and data links, flight control systems can receive and transmit flight data in real time, improving connectivity with air traffic management systems and ground control centers. This integration supports real-time data exchange and collaborative decision-making, enhancing flight safety and efficiency. System optimization is a key method for improving the overall performance of flight control systems. Through optimization of control algorithms and system configurations, modern flight control systems have made significant progress in fuel efficiency, operational simplification, and automation. For example, optimized control strategies can reduce fuel consumption and minimize energy loss during flight. Simplified operations and automation features make pilot operations more convenient, reducing workload and increasing operational precision [9].

4. Future Development Trends

With the rapid advancement of flight control technology, the future of commercial aircraft flight control systems is expected to move towards greater intelligence and networking. In this context, comparing mechanical flight control systems with electrical flight control systems (such as FBW system) becomes particularly significant, as they represent different stages and directions in the evolution of flight control technology. Mechanical flight control systems traditionally use physical linkages and mechanical devices to directly control the aircraft's control surfaces. These systems are straightforward and intuitive in design, with relatively easy maintenance, but they have limitations in terms of complexity and precision. As flight control technology has evolved, mechanical systems have increasingly shown their inability to meet the modern aircraft's needs for high-precision control and complex operations. For example, mechanical systems often lag behind modern electrical systems in terms of response speed and adjustment accuracy when dealing with complex flight environments and sudden situations. Fly-by-Wire system represent an advanced direction in modern flight control technology. Electrical systems process flight commands through electronic computers, converting them into electrical signals to drive the aircraft's control surfaces. Compared to mechanical systems, electrical systems offer higher precision, faster response capabilities, and greater flexibility. For instance, electrical systems can optimize flight control through software algorithms, automatically adjusting flight parameters to accommodate various flight conditions. Besides, FBW systems have high integration, seamlessly coordinating with other systems such as navigation and communication, thereby enhancing the overall intelligence of flight management. The performance of the mechanical flight control system and the electrical flight control system is specified in Table 1 [10] [11][12].

Table 1. Benchmark Comparison of Mechanical Control and Fly-by-Wire System

Future trends indicate that electrical flight control systems will play a key role in the realms of intelligence and networking [13]. Intelligent technologies, such as artificial intelligence and machine learning, will further enhance the adaptive capabilities of electrical systems, enabling real-time analysis and optimization of flight data to improve safety and efficiency. Networking will enable flight control systems to interact more closely with ground control centers, air traffic management systems, and other aircraft, enhancing coordination and accuracy in flight management. Emerging technologies, such as high-performance sensors and new materials, will also have a profound impact on the future development of flight control systems [14]. The implementation of new materials can result in a reduction of system weight, an improvement in durability and fuel efficiency. Furthermore, the integration of advanced sensors can facilitate the acquisition of more accurate flight data, thereby enhancing the performance and reliability of electrical systems. In summary, the flight control systems of future commercial aircraft will become progressively more electrified and intelligent, with mechanical systems becoming obsolete. As technology advances, electrical systems will not only meet the complex demands of modern flight but will also provide enhanced safety, efficiency, and intelligence.

5. Conclusion

This paper has explored the advancements and trends in modern commercial aircraft flight control systems. From historical development to technological innovation, flight management systems have undergone significant transformations, particularly in the areas of intelligence and networking. While mechanical flight control systems played a crucial role in early aviation technology, their limitations in precision and adaptability have become evident, especially in complex flight environments and high-precision control requirements. Fly-by-Wire represents the cutting edge of modern flight control technology, offering higher precision, faster response, and greater flexibility. These systems not only optimize flight control through electronic computers and advanced algorithms but also achieve high integration with navigation, communication, and other systems, enhancing overall flight management intelligence. In light of the ongoing advancement of artificial intelligence and emerging technologies, it is reasonable to anticipate that future flight control systems will become increasingly intelligent and networked. The incorporation of intelligent technologies, such as machine learning, will further enhance the system's adaptive capabilities and decision-support capabilities. Furthermore, the implementation of networking will facilitate seamless integration with ground and other airborne systems. Moreover, the implementation of innovative materials and high-performance sensors will enhance the system performance and reliability.
