1. Introduction

The theoretical efficiency of perovskite solar cells (PSCs) in a single-junction configuration is limited to approximately 30%, constrained by the Shockley-Queisser (S-Q) limit [1]. Furthermore, due to the bandgap of perovskite materials (typically 1.5-1.6 eV), they primarily absorb visible light, resulting in the wastage of near-infrared (NIR) photons. This phenomenon significantly impedes the industrialization and large-scale photovoltaic application of PSCs. To overcome this bottleneck, the development of novel solar cell architectures is imperative. Perovskite-based tandem solar cells, which utilize stacked multiple light-absorbing layers to achieve full-spectrum solar energy harvesting, have emerged as a strategic solution. By exploiting the characteristic of different sub-cells absorbing distinct spectral bands, the tandem configuration can reduce thermalization losses and substantially enhance solar energy utilization and the overall power conversion efficiency (PCE) of the cell.

Based on electrical interconnection schemes, tandem solar cells are primarily categorized into two-terminal (2-T) and four-terminal (4-T) configurations. The key distinction lies in that 2-T sub-cells are monolithically series-connected via an interconnecting layer (ICL), whereas 4-T sub-cells are mechanically stacked and possess independent electrical circuits. Owing to its simpler structure and lower fabrication cost, the 2-T tandem architecture has witnessed significant development in recent years. Current research achievements report a PCE of 34.6% for dual-junction tandem cells [2].

The fundamental structure of a dual-junction tandem solar cell comprises a wide-bandgap top cell, a narrow-bandgap bottom cell, and an interconnecting layer that couples the subcells. Given that the bandgap of perovskite materials can be widely tuned through compositional engineering, perovskite serves as an excellent top-cell material compatible with various narrow-bandgap bottom cells. Current major categories of perovskite-based tandem solar cells include perovskite/silicon (Si) tandems, all-perovskite tandems, perovskite/copper indium gallium selenide (CIGS) tandems, and perovskite/organic tandems. Perovskite/organic tandem solar cells exhibit unique advantages. Firstly, organic semiconductor materials, such as ITIC, offer high tunability, enabling precise bandgap design for efficient NIR light harvesting. Secondly, the intrinsic flexibility of organic materials supports applications in wearable electronics. However, their certified efficiency (23.6%) remains significantly lower than that of perovskite/Si (31.3%) and all-perovskite (24.8%) tandems, primarily attributed to the low charge carrier mobility within the organic layers and interfacial voltage losses [3,4].

This paper summarizes the current development status of organic layer materials—particularly A-D-A type non-fullerene acceptors (NFAs) like ITIC, which have revolutionized charge separation processes through intramolecular charge transfer (ICT) mechanisms. It systematically compares the performance of perovskite/organic tandem solar cells with other tandem configurations and analyzes the advantages as well as the key factors and bottlenecks limiting their efficiency, such as fill factor (FF), stability, and proposes possible future development directions. This study aims to provide a theoretical foundation for optimizing perovskite-organic tandem solar cells and facilitating their industrialization.

2. Structure, materials and performance of perovskite/organic tandem solar cells

2.1. Fundamental structure of perovskite/organic tandem solar cells

A perovskite/organic tandem solar cell comprises three essential components: a wide-bandgap top cell is designed to absorb high-energy photons, whereas a narrow-bandgap bottom cell is intended to capture the low-energy photons transmitted through the top cell. Additionally, an interconnecting layer (ICL) is incorporated to facilitate efficient carrier recombination, while simultaneously permitting the transmission of long-wavelength photons.

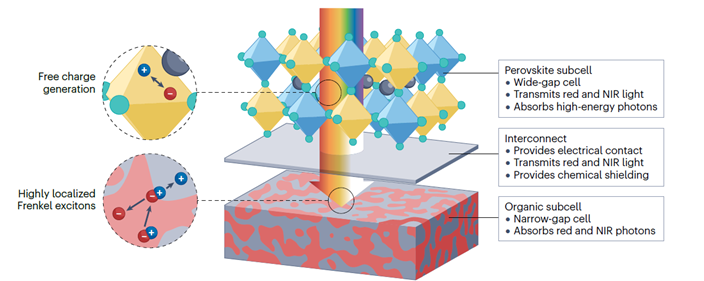

A schematic diagram illustrating the composition and operational principle of these components is presented in Figure. 1 [5]. Specifically, the top cell is used to absorb ultraviolet-visible light. Taking advantage of the perovskite materials' characteristics of high light absorption coefficient and excellent carrier transport properties, it efficiently converts high-energy solar energy. As shown in Figure 1 [5], in most perovskite absorption layers, the absorption of light gives rise to the generation of free charge carriers. The interconnecting layer, as a critical functional layer connecting the top and bottom cells, mainly functions to series-connect the sub-cells, suppress electron-hole recombination, and transmit low-energy photons unabsorbed, transferring from the top cell over to the bottom cell. The core function of the organic bottom cell is to absorb near-infrared light unutilized by the top cell in the solar spectrum, forming spectral complementarity with the top cell to achieve efficient utilization of the full solar spectrum.

As observed in Figure 1 [5], in the top cell, free charge carriers in most perovskite absorption layers are generated upon light absorption. In the bottom cell, the primary excited states in organic semiconductors are strongly bound Frenkel excitons. Unlike the carriers in materials such as perovskites, which can freely separate and migrate, it is exclusively at the donor-acceptor interface that Frenkel excitons can realize charge separation, like a heterojunction composed of the PM6 donor and the ITIC acceptor.

2.2. Key performance parameters

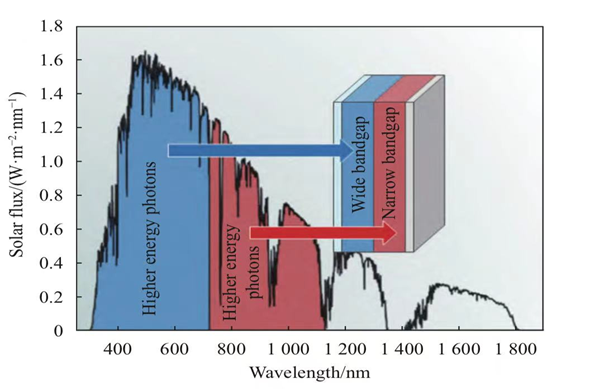

Perovskite employed as the top-cell material is engineered to harvest high-energy photons within the ultraviolet and visible spectral range (300-700 nm), while simultaneously transmitting lower-energy infrared photons (700-1200 nm) to the underlying organic subcell. This spectral allocation aligns with the approximate absorption bands of both top and bottom subcells, as illustrated in Figure 2 [6]. Such deliberate photon distribution minimizes thermalization losses, constituting a fundamental efficiency advantage for tandem solar cell architectures.

To achieve high-efficiency energy conversion, the bandgap energies (Eg) and current outputs of the top and bottom sub-cells must be judiciously matched according to fundamental principles. The target bandgap of the top cell material must satisfy the current matching condition. The core formula can be expressed as [3]:

$$ J_{sc}^{top}\left(E_g^{top}\right)=J_{sc}^{bottom}\left(E_g^{bottom}\right)$$(1)

$$ J_{sc}=\frac{q}{hc}{\int }_0^{\lambda g}EQE\left(\lambda \right)\cdot \lambda \cdot I_{AM1.5G}\left(\lambda \right)\cdot d\left(\lambda \right)$$(2)

Where  $$ J_{sc}$$ , the short-circuit current density $$ \left(mA/c{m}^2\right)$$ .  $$ {\lambda }_g=\frac{1240}{E_g}(nm,eV)$$ ， $$ J_{sc}^{top}$$ , the short-circuit current density of the top cell ( $$ mA/c{m}^2$$ ).  $$ J_{sc}^{bottom}$$ , the short-circuit current density of the bottom cell ( $$ mA/c{m}^2$$ ) [1,3].  $$ E_g^{bottom}$$ , the known bandgap of the bottom cell. Given that the bandgap of the bottom organic cell in perovskite/organic tandems is typically ~1.25 eV, the calculated target bandgap for the top cell material is approximately 1.85 eV. Bandgap engineering of the top perovskite material is commonly achieved through precise control of halide composition. For instance, CsPb(I₀.₅Br₀.₅)₃ incorporates 50% bromide content. Optimization of the top cell bandgap enables complementary absorption with the narrow-bandgap organic bottom cell, maximizing photon utilization across the solar spectrum and enhancing overall device efficiency.

2.3. Classification of organic bottom cell materials

The narrow-bandgap subcell within perovskite-organic tandem solar cells, specifically the organic bottom cell, is designed to harvest infrared photons efficiently. Owing to the vast chemical diversity of organic semiconductors, the selection pool for organic bottom cell materials is extensive. Currently prevalent organic active layer materials encompass the following categories:

Non-Fullerene Acceptors (NFAs) can be structurally categorized into IT-family and Y-family derivatives. IT-family NFAs exhibit less demanding synthetic routes but possess a relatively narrow absorption edge, which inherently limits photocurrent generation. In contrast, Y-family counterparts demonstrate broader spectral coverage while requiring more complex synthesis and exhibiting inferior photostability. Besides, donor Polymers, such as PM6, form bulk heterojunction photovoltaic layers when blended with non-fullerene acceptors.

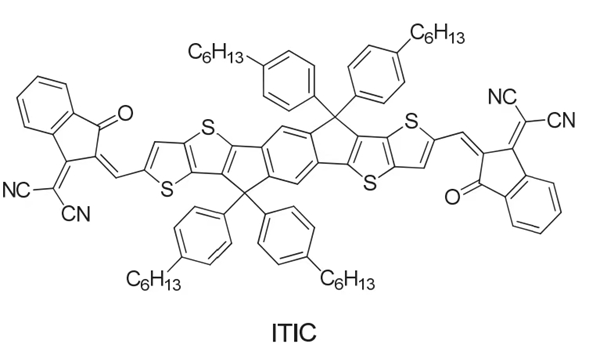

This section will focus specifically on ITIC, 3,9-bis(2-methylene-(3-(1,1-dicyanomethylene)-indanone))-5,5,11,11-tetrakis(4-hexylphenyI)-dithieno[2,3-d:2,3-d’]-s-indaceno[1,2-b:5,6-b] dithiophene, a representative molecule from the IT-family of non-fullerene acceptors (NFAs) [7]. Prior to the advent of ITIC, fullerene derivatives dominated as electron acceptors. However, the efficiency of the technology plateaued at slightly above 10%, primarily due to the weak absorption of fullerenes across the visible-to-near-infrared spectrum and the inherent difficulty in tuning their frontier orbital energy levels. Distinct from the spherical structure of fullerenes, ITIC features a planar fused-ring donor core as depicted in Figure 3, flanked by electron-accepting end groups. ITIC adopts an acceptor-donor-acceptor (A-D-A) molecular architecture, comprising an electron-donor (D) benzodithiophene (BDT) core and strongly electron-acceptor (A) end groups, typically indenedione (IC) [8].

The A-D-A structure confers significant advantages. The spherical nature of fullerenes promotes tightly bound electron-hole pairs (excitons) susceptible to recombination. Conversely, ITIC's molecular configuration spatially separates electrons and holes, localizing them predominantly on the acceptor (A) termini and the donor (D) core, respectively. This spatial separation facilitates exciton dissociation into free charge carriers under mild conditions. Consequently, ITIC exhibits a pronounced intramolecular charge transfer (ICT) effect upon photoexcitation. Crucially, the ICT state can dissociate directly into free carriers, effectively circumventing recombination losses. The characteristic also lowers the LUMO energy level by approximately 0.3 eV, resulting in a reduced optical bandgap and a concomitant red shift in the absorption spectrum [7,9]. Employing ITIC as an electron acceptor overcame the efficiency limitations inherent to fullerene-based acceptors.

This pioneering work established a new pathway for modulating energy levels and band gaps to enhance the functionality of electron acceptors within organic photovoltaics.

2.4. Synergistic effects between sub-cells in tandem configuration this section must be in one column

First, spectral Filtering by the Top Cell. The perovskite top cell absorbs UV and blue light, thereby shielding the underlying organic materials from high-energy photon-induced degradation. This significantly enhances the operational lifetime of the organic bottom cell under 1-sun illumination. The second part is about overall Efficiency Enhancement. Through optimization of bandgap pairing and device engineering, the power conversion efficiency (PCE) of tandem cells has surged from <17% in 2020 to >24% in 2023 [9]. This substantial gain primarily originates from reduced interfacial voltage losses and improved current matching between the constituent sub-cells.

3. Performance analysis and optimization of perovskite solar cells

Tandem solar cells employing perovskite as the top cell have rapidly advanced in recent years, emerging as a prominent research focus in photovoltaic technology. Among these, perovskite-silicon tandems represent the most extensively studied architecture, achieving a certified PCE of 34.6% [2]. Other emerging configurations include all-perovskite tandems, perovskite-organic tandems, and perovskite-CIGS tandems. This section reviews critical performance parameters and fabrication costs for various two-terminal tandem solar cells, aiming to analyze the advantages and limitations of perovskite-organic tandem solar cells while proposing potential improvement strategies.

3.1. Comparison of certified champion efficiencies

Perovskite-organic tandem solar cells have achieved a PCE of 23.6% [3]. This performance compares with certified PCE values of 31.3% [4] for perovskite-silicon tandems, 24.8% [4] for all-perovskite tandems, and 24.2% for perovskite/CIGS tandems [10]. The efficiency ceiling of perovskite-organic devices thus lags 7.7% behind the highest-performing perovskite-silicon technology and remains less competitive than other tandem configurations. This limitation primarily originates from the substantially lower carrier mobility of organic materials relative to crystalline silicon and perovskites [3,11], which increases series resistance and constrains critical parameters including short-circuit current density ( $$ J_{sc}$$ ) and FF.

To enhance PCE in organic-containing tandem architectures, two strategic approaches may be implemented: introducing inorganic perovskite materials into organic layers through doping to create hybrid structures, or adding perovskite sub-cells to conventional configurations to form triple-junction devices. These modifications preserve the infrared absorption capabilities inherent to organic components while partially compensating for carrier transport limitations. Significant open-circuit voltage losses have been observed in this system due to energy level misalignment between wide-bandgap perovskites and electron transport layers, despite a successful proof-of-concept demonstration [3]. Nevertheless, this work validates the fundamental viability of triple-junction architectures combining perovskite and organic materials, indicating substantial potential for further development in this domain.

Additionally, the typically poor thermal stability of organic layers presents another efficiency constraint, as molecular chain aggregation or thermal decomposition reduces shunt resistance and consequently diminishes current output and FF [7].

3.2. FF comparison

FF is a dimensionless parameter ranging from 0 to 1, where values closer to 1 indicate that a solar cell operates nearer to its ideal performance with minimal energy losses. This metric is calculated through the equation [12]:

$$ FF=\frac{I_{\mathrm{m}\mathrm{a}\mathrm{x}}\times V_{\mathrm{m}\mathrm{a}\mathrm{x}}}{I_{sc}\times V_{oc}}$$(3)

in which $$ I_{sc}$$  denotes the short-circuit current,  $$ V_{oc}$$  represents the open-circuit voltage, and  $$ I_{\mathrm{m}\mathrm{a}\mathrm{x}}{ and V}_{\mathrm{m}\mathrm{a}\mathrm{x}}$$  correspond to the current and voltage values at the maximum power point on the current-voltage curve（I-V）. The fill factor exhibits a direct relationship with power conversion efficiency, as expressed by [13]:

$$ \eta =\frac{FF\cdot I_{sc}{V}_{oc}}{p_{in}}$$(4)

where  $$ p_{in}$$  stands for incident light power. Consequently, the fill factor serves as a critical performance indicator for evaluating the output power of solar cell.

Perovskite-organic tandem solar cells demonstrate FF between 74.81% and 78.5% [3,11,14]. By comparison, perovskite-silicon tandem devices achieve FF values spanning 69.1% to 79.8% [4,15], all-perovskite tandems attain 78.1% to 81.6% [16,17], and perovskite/CIGS tandems yield 56.6% to 75% [3,18]. These comparative analyses reveal that perovskite-organic tandems display narrower FF fluctuations than CIGS-based devices. The significant variation in CIGS tandems primarily results from inconsistent interfacial contact caused by surface roughness disparities, whereas the constrained FF range in perovskite-organic systems reflects superior process consistency and experimental reproducibility [3,18].

To address FF reduction stemming from the inherently low carrier mobility of organic materials, developing high-mobility acceptors presents a viable solution. For instance, researchers at South China University of Technology employed PM6:Y6 organic layers to elevate charge mobility to 1.5 cm²/(V·s), thereby achieving a 78.5% fill factor [11]. This approach demonstrates that enhancing molecular rigidity through fused-ring structures can effectively improve thermal resilience.

3.3. Stability comparison

Standard stability testing under 1-sun illumination reveals distinct degradation patterns: perovskite-organic tandem cells retain 90% of initial efficiency after 500 hours; perovskite-silicon tandems maintain >96% efficiency following 1,000 hours; all-perovskite devices preserve 94% efficiency over 1,000 hours; and perovskite/CIGS systems sustain over 90% initial performance after 320 hours of continuous operation [3,19-21]. These results confirm the superior thermal stability of perovskite-dominated architectures. As previously noted, the comparatively lower stability of organic-containing tandems originates from the tendency of organic molecular chains to undergo deformation or scission under thermal stress.

Enhancing morphological stability in organic layers could involve incorporating crosslinkers to immobilize molecular chains through covalent bonding. This strategy may draw inspiration from successful grain-boundary engineering in all-perovskite devices, such as the GuaSCN-mediated suppression of crystalline disorder, which is adapted specifically for perovskite-organic systems [22].

3.4. Flexibility potential assessment

The growing demand for wearable electronics and flexible displays necessitates batteries with mechanical flexibility. Flexibility potential – defined as compatibility with flexible electronics manufacturing – depends primarily on two criteria: material compatibility with pliable substrates and adaptability to solution-coating processes. These requirements mandate inherent material flexibility and conformal interfacial contact between functional layers and substrates.

Detailed evaluations indicate fundamental differences: perovskite-silicon tandems lack flexibility due to rigid silicon wafers; all-perovskite devices exhibit excellent flexibility potential since both subcells consist of solution-processable perovskite films under 1 μm thick; perovskite/CIGS configurations show limited flexibility owing to rough CIGS surfaces that require additional interfacial engineering like chemical-mechanical polishing [7]. Perovskite-organic tandems demonstrate exceptional flexibility through organic materials’ intrinsic pliability and compatibility with orthogonal solution processing on bendable substrates without rigid supports. Furthermore, their manufacturing compatibility with roll-to-roll techniques enables cost-effective large-area production [9]. Considering these material properties, process adaptability, and scalability factors, perovskite-organic tandems possess the highest flexibility potential among tandem technologies, making them ideal for wearable devices and lightweight power systems.

4. Conclusion

The article introduces the fundamental architecture of perovskite-organic tandem solar cells. Comparative analysis against mainstream technologies—namely, perovskite/silicon, all-perovskite, and perovskite/CIGS tandems—reveals both competitive advantages and persistent challenges for perovskite-organic configurations. Regarding power conversion efficiency, perovskite-organic tandem cells have achieved a certified maximum of 23.6%. However, the relatively low carrier mobility within the organic subcell limits the short-circuit current density and fill factor (FF), resulting in an efficiency deficit. Thermal deformation of organic molecular chains has been identified as the underlying cause of this stability gap. Nevertheless, a key comparative strength lies in their solution processability on flexible substrates, granting perovskite-organic solar cells unparalleled potential for applications in bendable electronics.

To bridge the performance gap between perovskite-organic tandems and other technologies, this article proposes several research strategies. Addressing the efficiency limitation imposed by low organic carrier mobility could involve constructing triple-junction architectures, such as perovskite/perovskite/organic stacks, to synergistically enhance infrared light absorption and carrier transport. To mitigate the thermal instability inherent to organic materials, innovations such as developing high-mobility non-fullerene acceptors (e.g., Y6 derivatives) and incorporating crosslinked polymers could enhance thermal robustness. Finally, interfacial engineering, specifically the customization and optimization of the interconnecting layer (ICL), can minimize losses arising from energy-level misalignment and reduce thermalization losses. Future research must prioritize extending the absorption edge of organic materials beyond 1000 nm and achieving operational stability exceeding 1000 hours. Through collaborative efforts spanning chemistry and device physics, perovskite-organic tandem solar cells hold significant promise as a next-generation, low-cost, flexible photovoltaic solution.
