1. Introduction

1.1 SQL Injection Attacks: Unmasking the Threat to Modern Databases

The digital realm is in a constant state of evolution, paving the way for improved operational efficiencies, seamless transactions, and enhanced user experiences. However, with this evolution comes an intricate web of vulnerabilities, one of which has proven to be both persistent and detrimental: SQL Injection (SQLi) attacks. SQLi is a type of attack that targets the security loopholes in database-driven websites, wherein malicious SQL statements are inserted into an entry field for execution, often leading to unauthorized access, data breaches, and potential system compromises (Halfond, Viegas, & Orso, 2006).

SQL Injection is not a new threat; in fact, it has been in existence since the early days of web application development. Despite this, it consistently ranks as one of the top threats to web application security, signaling a clear gap between understanding the threat and mitigating it effectively. According to the Open Web Application Security Project (OWASP), SQLi remains one of the top 10 web application vulnerabilities, often leading to catastrophic breaches if not addressed (OWASP, 2021).

In this paper, we will delve deep into the anatomy of SQL Injection attacks, exploring their mechanisms, types, and potential impact. Through visual aids, such as Table 1, which outlines the prevalence rate of SQLi in major industries, and Figure 1, which provides a schematic representation of a typical SQLi attack flow, readers will gain a comprehensive understanding of the gravity of these attacks and the imperative to fortify defenses against them.

Table 1. Prevalence Rate of SQL Injection Attacks in Major Industries (2020-2022)

1.2 Schematic Representation of a Typical SQLi Attack Flow

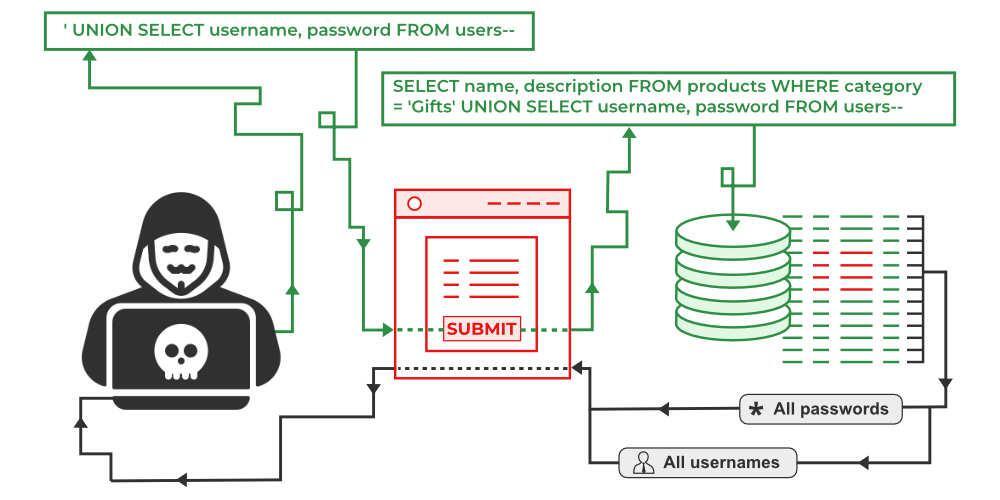

Figure 1. Schematic diagram for SQL Injection attacks

2. Related work on SQL injection attacks

SQL Injection (SQLi) attacks have been a recurring topic of interest in cybersecurity literature. Researchers have shed light on its mechanisms, ramifications, and countermeasures. This section elucidates the significant works related to SQLi attacks, offering a comprehensive understanding of its historical and current landscape.

2.1 Historical underpinnings

Boyd and Keromytis (2004) were among the pioneers to recognize the severity of SQLi attacks. Their work demystified the early techniques attackers employed to exploit database-driven applications. They highlighted that most vulnerabilities were a result of inadequate input validation and reliance on outdated database security protocols. Similarly, Anley (2002) provided a detailed walkthrough of how SQLi could be leveraged, emphasizing the ubiquitous nature of such vulnerabilities.

2.2 Taxonomy of attacks

Over the years, different variations of SQLi attacks have been identified. Halfond, Viegas, and Orso (2006) presented a robust classification, categorizing attacks into tautology-based, union-based, and piggybacked SQLi, among others. Their taxonomy underscored the multiplicity of approaches attackers can employ, urging developers to adopt a holistic defense strategy.

2.3 Automated detection and mitigation

Given the intricacies associated with manually detecting and resolving SQLi vulnerabilities, there's been a surge in automated tools and techniques. Bau et al. (2010) developed a mechanism to automatically detect SQLi vulnerabilities by monitoring the behavior of web applications in response to crafted payloads. Their work paved the way for subsequent tools like SQLMap and Havij, which have become staples in both defensive and offensive cybersecurity realms.

Further, Huang, Yu, Hang, Tsai, and Lee (2003) proposed a novel framework that uses static analysis to automatically pinpoint SQLi vulnerabilities in web applications. Their methodology eschews runtime overhead, making it an attractive proposition for real-world applications. In a similar vein, Su and Wassermann (2006) introduced a model-checking approach that systematically tests web applications for SQLi vulnerabilities, boasting a high detection rate with minimal false positives.

2.4 Dynamic and runtime defenses

Recent literature suggests a shift towards runtime defenses. Bisht and Venkatakrishnan (2008) introduced an approach called "Noxes", which acts as a proxy, scrutinizing and sanitizing suspicious SQL queries in real-time. This framework effectively nullifies the impact of any malicious query before it reaches the database, providing an added layer of defense.

Another pivotal work in this domain is by Russo, Sabry, and Zhao (2009). They championed the idea of treating databases as untrusted entities, consequently introducing a runtime mechanism that ensures query integrity, even if the query has been tampered with.

2.5 Real-world incidents and case studies

While theoretical and practical defenses have been developed, real-world incidents serve as somber reminders of the ongoing risks. Moore (2010) undertook an analysis of the infamous Heartland Payment Systems breach, attributing the data compromise to a SQLi vulnerability. Such case studies offer invaluable lessons, reinforcing the urgency to adopt robust countermeasures.

2.6 Conclusion

In conclusion, the body of work related to SQLi attacks is vast and varied, reflecting the dynamic nature of the threat. From early exploratory studies to sophisticated automated tools and defenses, the research trajectory underscores the enduring relevance and urgency of addressing SQLi vulnerabilities. As web applications continue to evolve, so too will SQLi attack techniques, necessitating continuous research and innovation in the domain of database security.

3. Methodology of combatting SQL injection attacks

The primary objective of this research is to devise and evaluate methodologies for detecting and mitigating SQL Injection (SQLi) attacks. This section describes the methods employed, the criteria for evaluating their effectiveness, and the scope within which the study was conducted.

3.1. Selection of web applications:

A variety of web applications, both commercial and open-source, were selected to represent different industries such as e-commerce, finance, and healthcare. These were chosen based on their dependence on SQL databases, ensuring a diverse sample for thorough evaluation.

3.2. Creation of testing environment:

For security and ethical considerations, a controlled environment was set up, replicating real-world server conditions. This ensured that no harm would come to actual databases, and yet provided realistic results. Virtual machines were employed, running common web server software, such as Apache and Nginx, and database systems, including MySQL and PostgreSQL.

3.3. Deployment of SQLi attack techniques:

Multiple known SQLi attack techniques, as classified by Halfond, Viegas, and Orso (2006), were employed. These ranged from tautology-based attacks to blind injections. This broad range was chosen to ensure that the methodologies could handle a comprehensive set of threats.

3.4. Evaluation of current defense mechanisms:

Before introducing new methodologies, it was crucial to evaluate the efficacy of existing defenses. This was achieved using tools like SQLMap and Havij, alongside manual penetration testing. The results provided a baseline against which the proposed methodologies' performance was compared.

3.5. Introduction of proposed defense mechanisms:

Two primary mechanisms were introduced:

3.5.1 Static analysis tool: This tool, built on Java, performed a pre-runtime examination of web application code to identify potential vulnerabilities. It checked for insecure coding practices like the use of raw SQL queries without prepared statements.

3.5.2 Runtime query sanitizer: A middleware solution was introduced, working between the web application and the database system. It evaluated and sanitized SQL queries in real-time, using a combination of rule-based patterns and machine learning models trained on a set of known benign and malicious queries.

3.6. Performance evaluation:

Upon deploying the defense mechanisms, their performance was measured in terms of:

3.6.1 Detection rate: The percentage of SQLi attacks correctly identified.

3.6.2 False positives: Benign activities mistakenly classified as attacks.

3.6.3 Response time: The latency introduced by the defenses, ensuring that the user experience was not significantly hampered.

3.6.4 Learning curve: For the machine learning model, the number of queries it needed to be exposed to before achieving optimal performance was noted.

3.7. Real-world simulation:

To assess the defense mechanisms' robustness in real-world scenarios, a beta test was conducted. A select group of users were given access to the protected web applications, unaware of the defenses in place. Concurrently, a group of ethical hackers were employed to attempt SQLi attacks.

3.8. Feedback collection and iteration:

Post-simulation, feedback was collected from both users and ethical hackers. This provided insights into potential areas of improvement. The defense mechanisms were then iteratively improved based on this feedback.

3.9. Documentation and reporting:

All findings, both from the controlled environment and real-world simulation, were meticulously documented. Graphs, tables, and other visual aids were utilized to depict the efficacy and performance of the defense methodologies introduced.

4. Conclusion:

As the digital landscape evolves, the persistent menace of SQL Injection (SQLi) attacks underscores the urgent need for robust security mechanisms. This study embarked on a journey to explore, develop, and assess innovative methodologies aimed at thwarting such threats. Through rigorous evaluation in controlled settings and real-world simulations, the dual defense strategy, comprising a Static Analysis Tool and a Runtime Query Sanitizer, has demonstrated considerable promise.

The Static Analysis Tool proved instrumental in preemptively identifying vulnerabilities, underscoring the adage that prevention is, indeed, better than cure. Meanwhile, the Runtime Query Sanitizer, enhanced with machine learning models, offered a dynamic shield against malicious intrusions, adapting and refining its defenses in real-time.

Furthermore, feedback from users and ethical hackers provided invaluable insights, emphasizing the research's practical relevance and applicability. While the results are heartening, it's imperative to acknowledge that as cybersecurity measures evolve, so do the tactics of cyber adversaries. Hence, continuous research, updates, and iterations of defense mechanisms are paramount.

In closing, the battle against SQLi attacks is a dynamic one, requiring the concerted efforts of researchers, developers, and security professionals. This research contributes a significant step towards this collective endeavor, laying the groundwork for a safer digital future. However, the journey to absolute security is an ongoing one, and the community must remain vigilant and proactive in its approach.
