1. Introduction

The evolution of computer animation technology has significantly transformed the fields of entertainment, gaming, and virtual reality, allowing for the creation of highly detailed and lifelike visual experiences. At the heart of this transformation is 3D modeling and animation, which encompass the creation of three-dimensional representations of characters and environments, and their subsequent animation to simulate realistic movement. The process of 3D animation involves multiple stages, each leveraging sophisticated mathematical models and algorithms to achieve high levels of realism and efficiency. Character design is the foundation of 3D animation, where understanding anatomy and proportions is crucial for creating realistic and expressive characters. Techniques such as Bezier curves and spline interpolation are used to define skeletal structures and musculature. Texturing and shading add visual detail, with models like Perlin noise and fractal algorithms creating natural-looking surfaces. Rigging and skinning, employing Inverse Kinematics (IK) and Forward Kinematics (FK), ensure that characters move naturally. Environment modeling involves generating realistic landscapes and architectural structures using procedural generation and Constructive Solid Geometry (CSG). Mathematical models play a key role in simulating natural phenomena and creating complex environments. Animation rigging and motion capture further enhance realism by capturing real-life movements and applying them to digital characters. The use of software tools such as Blender, Autodesk Maya, and Houdini integrates these techniques into a cohesive workflow, facilitating the creation of intricate animations [1]. This paper aims to provide a comprehensive overview of these technologies, exploring the current methodologies and future directions in 3D animation. By understanding the underlying mathematical models and the capabilities of modern software tools, animators can push the boundaries of what is possible in computer-generated imagery.

2. Character Design in 3D Animation

2.1. Anatomy and Proportions

Character design in 3D animation starts with understanding the anatomy and proportions of the character, which are crucial for achieving realistic movement and expressions. Mathematical models such as the Bezier curve and spline interpolation are used to define the character’s skeletal structure and musculature. Bezier curves provide a way to create smooth and scalable bone structures that can be easily manipulated, while spline interpolation helps in modeling complex muscle movements by smoothly transitioning between key points [2]. These mathematical models ensure that the character’s proportions are accurate and that the deformations during animation are realistic, enabling the creation of lifelike characters that move naturally.

2.2. Texturing and Shading

Texturing and shading are essential for adding detail and realism to 3D characters. Mathematical models such as Perlin noise and fractal algorithms are used to generate realistic textures that mimic the complexity of natural surfaces. Perlin noise, for instance, is used to create textures that have a random yet natural appearance, such as skin, fabric, or terrain. Fractal algorithms help in adding intricate details by creating self-similar patterns that enhance the realism of textures. Shading models like the Phong reflection model and the Lambertian reflectance model use mathematical equations to calculate how light interacts with surfaces, ensuring that textures look realistic under various lighting conditions. These models are integral to achieving high-quality visual effects in character design [3].

2.3. Rigging and Skinning

Rigging and skinning involve creating a skeletal structure for the character and binding the 3D mesh to this skeleton so that it deforms naturally when animated. The use of Inverse Kinematics (IK) and Forward Kinematics (FK) in rigging is based on mathematical models that calculate the positions and rotations of bones in a hierarchical structure. IK algorithms, for instance, are used to determine the angles of joints needed to reach a specific end point, while FK algorithms calculate the position of each joint based on the previous joint’s position and rotation. Skinning algorithms like linear blend skinning and dual quaternion skinning use mathematical models to ensure smooth deformation of the mesh, preventing common issues like collapsing joints or volume loss during animation [4]. These models are crucial for creating realistic and flexible character animations. Table 1 summarizes the key aspects of character design in 3D animation, the mathematical models used, their descriptions, and their optimization impacts.

Table 1. Character Design in 3D Animation

3. Environment Modeling in 3D Animation

3.1. Landscape and Terrain Generation

Creating realistic environments in 3D animation starts with landscape and terrain generation, which involves using mathematical models to simulate natural landscapes. Procedural generation techniques such as fractal algorithms and height map generation are used to create detailed terrains that mimic the randomness and complexity of natural landscapes. Fractal algorithms generate terrains by recursively applying simple rules, creating self-similar patterns that resemble real-world terrains [5]. Height maps, which use grayscale images to represent elevation data, are transformed into 3D terrains using algorithms that interpolate between height values to create smooth transitions. These mathematical models enable the creation of large-scale, realistic environments efficiently.

3.2. Architectural Modeling

Architectural modeling involves the intricate process of designing and constructing detailed representations of buildings and other man-made structures. One of the key mathematical models used in this process is Constructive Solid Geometry (CSG). CSG is a powerful technique that creates complex architectural forms by combining simple geometric shapes (primitives) using set operations such as union, intersection, and difference. These operations allow for the creation of sophisticated and detailed models from basic building blocks. [6]

Constructive Solid Geometry (CSG) relies on a few fundamental operations to combine basic shapes into more complex structures. Here’s a more detailed look at how CSG works: 1. Union: The union operation combines two shapes into one, merging their volumes. Fon instance, if you have two cubes, the union operation will create a single shape that encompasses both cubes.

\( A\cup B \)

This is used when combining different parts of a building, like merging rooms or extending walls.

Intersection: The intersection operation finds the common volume shared by two shapes. If you intersect a sphere and a cube, the resulting shape will only include the volume where both shapes overlap.

\( A\cap B \)

This is useful for creating complex junctions or overlapping features within a structure.

Difference: The difference operation subtracts one shape from another. For example, subtracting a cylindrical shape from a cube can create a hole or an indentation.

\( A−B \)

This is particularly useful in architectural modeling for creating openings such as windows, doors, and other recesses in walls or structures.

Let’s consider designing a simple building with a door and a window using CSG:

Create Basic Shapes: Start with basic geometric primitives. For example, a large cuboid represents the main structure of the building.

\( L_{building} \)

Subtract Openings: Use the difference operation to subtract smaller shapes representing the door and windows from the main structure.

\( L_{building}−\left(D_{door}\cup W_{window1}\cup W_{window2}\right) \)

In this example, \( L_building \) is the large cuboid for the building structure, \( D_d\omega or \) is the shape of the door, and \( W_{window1} \) and \( W_{window2} \) are the shapes of the windows. By subtracting the door and windows from the main structure, you create openings in the model where these features are needed.

CSG provides a robust and flexible framework for creating detailed and accurate architectural models. By using set operations to combine and subtract simple geometric shapes, designers can construct intricate and realistic representations of buildings and structures, essential for both urban and interior environment modeling.

3.3. Environmental Effects

To enhance the realism of 3D environments, various environmental effects are incorporated using mathematical models. Particle systems and fluid dynamics simulations are used to create effects like fire, smoke, and water. Particle systems use stochastic processes and mathematical functions to simulate the behavior of large numbers of small particles, which collectively form complex phenomena. Fluid dynamics simulations solve the Navier-Stokes equations to model the movement of fluids, ensuring realistic behavior of water and smoke [7]. Volumetric rendering techniques, based on mathematical models of light scattering and absorption, are used to create effects like fog and clouds. These models are critical for adding realism and immersion to 3D environments.

4. Animation Rigging and Motion Capture

4.1. Skeletal Animation

Skeletal animation is a foundational technique in 3D animation, where a character’s skeleton is animated to create movement. Mathematical models such as quaternion interpolation and dual quaternion skinning are used to ensure smooth and realistic joint rotations and deformations. Quaternions provide a way to represent rotations that avoid the gimbal lock problem and enable smooth interpolation between keyframes. Dual quaternion skinning extends this by handling complex deformations, such as twisting and bending, more effectively than traditional linear blend skinning. These models are essential for creating fluid and natural character animations [8]. Figure 1 illustraes the impact of different mathematical models on the smoothness and realism of skeletal animation. The data shows the comparative scores for quaternion interpolation, dual quaternion skinning, and linear blend skinning, with dual quaternion skinning achieving the highest score in terms of smoothness and realism.

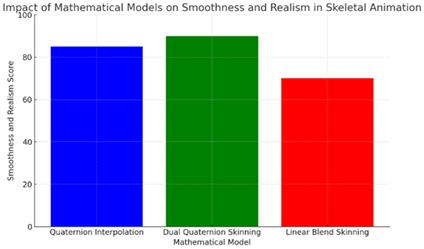

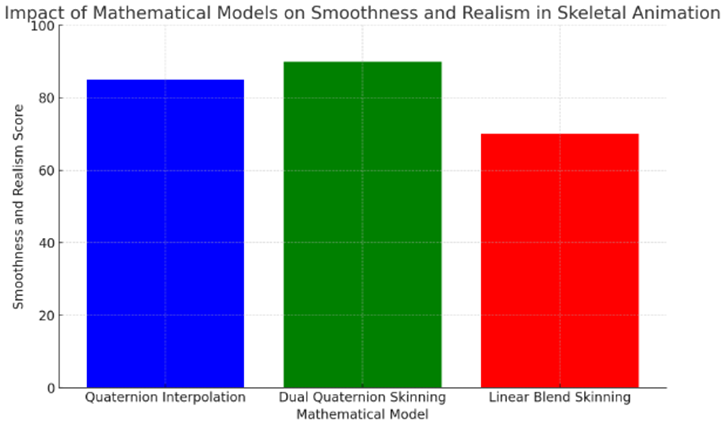

Figure 1. Impact of Mathematical Models on Smoothness and Realism in Skeletetal Animation

4.2. Motion Capture

Motion capture technology involves recording the movements of real actors and mapping them onto digital characters. The captured data is processed using mathematical models such as inverse kinematics and principal component analysis (PCA) to refine and optimize the motion data. Inverse kinematics algorithms calculate the necessary joint angles to achieve the recorded positions, while PCA reduces the complexity of the motion data by identifying the most significant patterns [9]. These models ensure that the captured movements are accurately transferred to the digital character, resulting in highly realistic animations.

5. Software Tools for 3D Modeling and Animation

5.1. Blender

Blender is an open-source 3D modeling and animation software that offers a comprehensive suite of tools for creating detailed animations. Blender’s non-linear animation system uses mathematical models like Bezier curves and spline interpolation to allow for complex animations to be created and edited easily. The software’s rendering engines, such as Cycles and Eevee, employ path tracing and real-time rendering techniques based on ray tracing algorithms, ensuring high-quality visual output. Blender’s open-source nature encourages a large community of developers and artists to contribute plugins and add-ons, enhancing its functionality and making it a versatile tool for 3D animation [10].

5.2. Autodesk Maya

Autodesk Maya is an industry-standard software for 3D modeling and animation, providing advanced tools for character rigging, animation, and dynamics simulation. Maya’s powerful scripting capabilities use mathematical models and algorithms to automate tasks and customize workflows. The software’s robust rendering engines, Arnold and Mental Ray, employ ray tracing and global illumination algorithms to deliver high-quality visual output. Maya is widely used in the film, television, and gaming industries due to its comprehensive feature set and integration with other Autodesk products, making it a preferred choice for professional animators and studios.

5.3. Houdini

Houdini, developed by SideFX, is renowned for its procedural generation capabilities and visual effects tools. Houdini’s node-based workflow uses mathematical models to create complex simulations for particles, fluids, smoke, and destruction. The software excels in procedural animation, where algorithms generate animations automatically based on predefined rules. Houdini’s integration of procedural techniques with keyframe animation allows for the creation of intricate and dynamic animations. This approach provides a high level of control and flexibility, enabling artists to create sophisticated visual effects and animations efficiently. Table 2 highlights the key features, primary use cases, community support, and optimization impacts of various software tools commonly used in 3D modeling and animation:

Table 2. Software Tools for 3D Modeling and Animation

6. Conclusion

The advancements in computer animation technology have opened new frontiers in creating realistic and engaging visual experiences. Through the use of sophisticated mathematical models and algorithms, animators can achieve high levels of detail and realism in character design, environment modeling, and animation rigging. Techniques such as Bezier curves, spline interpolation, Perlin noise, fractal algorithms, and IK/FK systems form the backbone of these processes. The integration of motion capture and procedural animation further enhances the quality of animations, making them more lifelike and dynamic. Software tools like Blender, Autodesk Maya, and Houdini provide robust platforms for implementing these techniques, offering comprehensive suites of tools that cater to various aspects of 3D animation. The continued development and integration of artificial intelligence and machine learning hold promise for automating and enhancing animation workflows, paving the way for even more sophisticated and efficient animation techniques. As the demand for high-quality animations continues to grow in industries such as film, gaming, and virtual reality, the role of advanced computer animation technologies will become increasingly critical. This paper highlights the current state of these technologies and outlines potential future directions, contributing to the ongoing evolution of the field. By leveraging these advancements, animators can create more immersive and visually stunning experiences that captivate audiences worldwide.
