DMDLK-Net: A dynamic multi-scale feature fusion network with deformable large kernel for medical segmentation

Boyang Wei 1*
  • 1 Nankai University
  • *corresponding author w963955357@163.com
Published on 25 October 2024 | https://doi.org/10.54254/2755-2721/95/2024BJ0061
ACE Vol.95
ISSN (Print): 2755-273X
ISSN (Online): 2755-2721
ISBN (Print): 978-1-83558-641-9
ISBN (Online): 978-1-83558-642-6

Abstract

Skin disease image segmentation is a crucial component of computer-aided diagnosis, providing precise localization and delineation of lesions that enhance diagnostic accuracy and efficiency. Despite significant advancements in convolutional neural networks (CNNs), there remains substantial room for improvement in segmentation performance due to the diverse and complex nature of skin lesions. In this study, we propose DMDLK-Net, a dynamic multi-scale feature fusion network with deformable large kernels, specifically designed to address the challenges in skin disease segmentation. Our network incorporates a Dynamic Deformable Large Kernel (DDLK) module and a Dynamic Multi-Scale Feature Fusion (DMFF) module, enhancing the model's ability to capture intricate lesion features. We present the performance of DMDLK-Net on the ISIC-2018 dataset, highlighting its promising results. Key contributions of this work include the innovative use of deformable large kernels for adaptive feature extraction and the introduction of dynamic multi-scale fusion to balance local and global information. Our experimental results confirm the effectiveness of DMDLK-Net in delivering high-precision segmentation, thus providing a reliable tool for clinical applications.

Keywords:

skin lesion segmentation, attention mechanism, deformable large kernel, multi-scale information, dynamic feature fusion.

Wei,B. (2024). DMDLK-Net: A dynamic multi-scale feature fusion network with deformable large kernel for medical segmentation. Applied and Computational Engineering,95,79-85.
Export citation

1. Introduction

Skin disease image segmentation is a critical component of computer-aided diagnosis, providing precise localization and delineation of lesions, thereby improving diagnostic accuracy and efficiency. In recent years, with the development of deep learning technologies, especially advancements in convolutional neural networks (CNNs), significant breakthroughs have been achieved in the field of medical image segmentation. From early fully convolutional networks (FCNs) to subsequent U-Net and its variants [1,2], and even to complex networks utilizing attention mechanisms and Transformer structures [3,5], the performance of neural network models in image segmentation is continuously improving.

However, the segmentation performance of existing models in the field of skin disease image segmentation still has considerable room for improvement and potential for growth. This is primarily due to the following issues: first, the diversity and complexity of skin lesions, including irregular shapes, color variations, and background interference, make it challenging for models to distinguish between normal tissues and lesion areas [6-9]. Secondly, existing models often neglect the balance between local and global information [3], resulting in decreased segmentation accuracy when dealing with blurred edges and complex structures.

To overcome these challenges, we proposed DMDLK-Net, adopting a unique approach by introducing a dynamic decoding strategy combined with a multi-scale feature fusion, enhancing the ability to capture and refine skin lesion features. This design improves the sensitivity of the model in capturing fine structures and complex textures. In the experiments section, we will demonstrate the performance of DMDLK-Net on skin disease image segmentation datasets, proving its superiority in segmentation accuracy.

The main contributions of this paper are as follows:

1. We introduced deformable large kernels (DLK) to address the morphological variability of skin lesion regions, designing the DDLK module for flexible feature extraction.

2. We design a DMFF module to dynamically achieve multi-scale feature integration by channel and spatial attention enhancement with less information losing.

3. We present a network which connects features in different level. The model outperforms existing state-of-the-art models, significantly improving segmentation accuracy.

In the upcoming part, we first provide a detailed introduction to the network structure, particularly focusing on the two key components in Section 2. Experiments and analysis are drawn in Section 3. Finally, some conclusions are provided in Section4.

2. Methods

2.1. Dynamic Deformable Large Kernel (DDLK)

Based on the DLK module of D-Net [4], we improved it and proposed the DDLK module using deformable large kernels for dynamic feature extraction. The deformable large kernel (DLK) can flexibly distort receptive fields, allowing the model to adapt to different data patterns [6, 7, 8, 9]. For segmentation tasks of skin diseases with diverse shapes and variable morphology, such flexible kernel shapes can enhance the representation of lesion areas, improving the definition of object contours and feature extraction accuracy. The structure of the deformable large kernel is shown in Figure 1.

The DDLK module first uses two serially connected DLKs with different kernel sizes to capture both local feature \( {M_{1}} \) and global feature \( {M_{2}} \) :

\( {M_{1}}, {M_{2}}=DLKConv(G), DLKConv(DLKConv(G)) \)

where \( G \) is the input feature. The generated feature maps are concatenated, and then global average pooling and global max pooling are applied to aggregation features in the spatial dimension. Then we adopt a convolution layer for feature interaction and a Sigmoid activation for information selection, and dynamically enhance vital information, obtaining feature \( {M^{*}} \) :

\( {M_{p}}=Concat(AveP(Concat({M_{1}},{M_{2}})),MaxP(Concat({M_{1}},{M_{2}}))) \)

\( M_{1}^{*}={M_{1}}⊗Sigmoid({Conv_{1×1}}({M_{p}})) \)

\( M_{2}^{*}={M_{2}}⊗Sigmoid({Conv_{1×1}}({M_{p}})) \)

\( {M^{*}}=M_{1}^{*}⊕M_{2}^{*} \)

By adding residual connections with the input feature map, prominent information in the channel dimension of the lesion features can be better replenished and refined:

\( {G^{*}}=G⊕{M^{*}} \)

where " \( ⊗ \) " represents pixel-wise multiplication, and " \( ⊕ \) " represents pixel-wise addition.

/word/media/image1.png

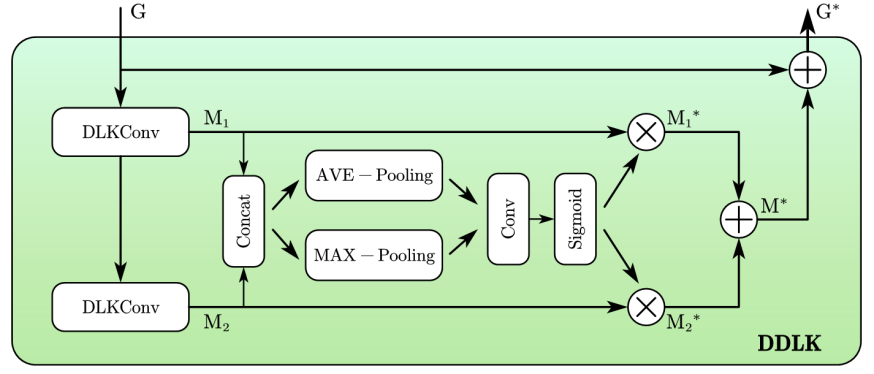

Figure 1. DDLK

2.2. Dynamic Multi-Scale Feature Fusion (DMFF)

Inspired by Jin Yang et al. [4] and Huajun Liu et al. [10], we propose a DMFF module. As shown in Figure 3, given two input features, \( {G_{1}} \) and \( {G_{2}} \) , which come from different layers of the model, the DMFF module selectively fuses different features in both spatial and channel dimensional enhancement .

In the spatial attention part, \( {G_{1}} \) and \( {G_{2}} \) are downsampled to the size of \( 1×H×W \) by using \( 1×1 \) convolutions, and then are fused to generate the integrated feature \( {M_{S}} \) :

\( {G_{1S}}={Conv_{1×1}}({G_{1}}) \)

\( {G_{2S}}={Conv_{1×1}}({G_{2}}) \)

\( {M_{S}}=Sigmoid({G_{1S}}⊕{G_{2S}}) \)

where " \( ⊕ \) " represents pixel-wise addition. In the channel attention part, \( {G_{1}} \) and \( {G_{2}} \) are firstly concatenated and then processed through three parallel paths. In the uppermost path, \( {G_{C}} \) is downsampled in channel dimension to \( 1×H×W \) through a \( 1×1 \) convolution, reshaped to \( HW×1 \) , and then passed through a Softmax layer to highlight the channel features. In the other parallel path, \( {G_{C}} \) is downsampled to \( C/2×H×W \) through a \( 1×1 \) convolution and reshaped to \( C/2×HW \) for subsequent feature refinement and then obtain feature \( {G_{C-M}} \) , which integrates spatial and channel information and enhance the feature contrast in channel dimension.

\( {G_{C-U}}=Softmax({Reshape_{HW×1}}({Conv_{1×1}}(Concat({G_{1}},{G_{2}})))) \)

\( {G_{C-M}}={Reshape_{C/2×HW}}({Conv_{1×1}}({G_{C}})) \)

\( {G_{C-UM}}={G_{C-M}}×{G_{C-U}} \)

where " \( × \) " represents matrix multiplication. After additionally processed through a \( 1×1 \) convolution, a layer normalization, and a Sigmoid function, the activated feature integrates with the residual connection of \( {G_{C}} \) , resulting in the enriched feature \( {M_{C}} : \)

\( G_{C}^{*}={G_{C}}⊗Sigmoid(LN({Conv_{1×1}}({G_{C-UM}}))) \)

\( {M_{C}}=({Conv_{1×1}}(G_{C}^{*})) \)

Finally, the features dynamically selected by spatial and channel information are fused into \( {G^{*}} \) to complete selected feature fusion: \( { G^{*}}={M_{s}}⊗{M_{C}} \) .

/word/media/image2.png

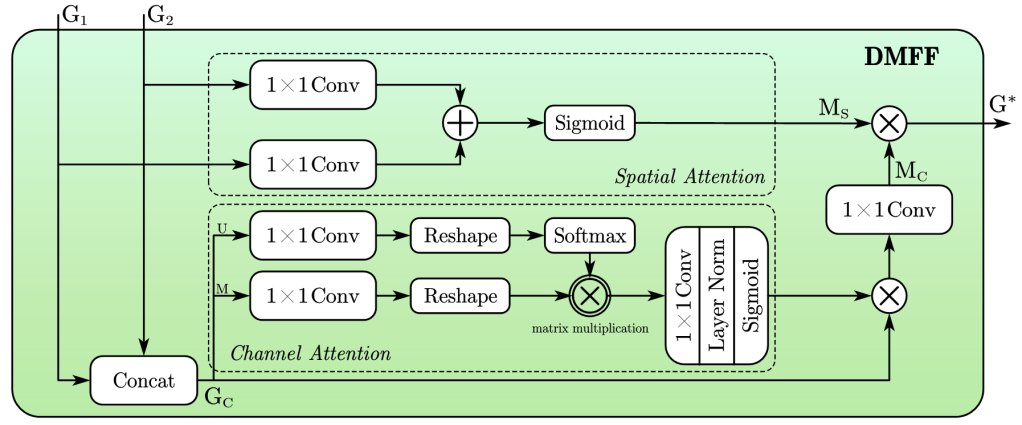

Figure 2. DMFF

2.3. DMDLK-Net Architecture

The architecture of DMDLK-Net is illustrated in Figure 3. It follows a classic symmetric encoder-decoder architecture and is organized into four levels.

In the encoder, we use the Mobile Convolution and Attention (MOAT) module for encoding tasks [5]. The structure of the MOAT module is shown on the left side of Figure 3. It sequentially consists of a lightweight convolutional part with depthwise separable convolutions for feature extraction and a self-attention block for attention enhancement, maintaining high feature extraction and expression capabilities while having a simple structure and low computational complexity.

The encoder is divided into four levels, with each level downsampling the input image by half. The first level is the STEM layer, composed of simple convolutions. The second to fourth levels consist of dual, triple, and heptuple stacked MOAT modules, respectively. In each stack of MOATs, the top MOAT module is responsible for downsampling, while the remaining modules enhance feature extraction. After downsampling the input image to 1/16th of its size, it is fed into the decoder through a symmetric bottleneck structure with down-up sampling.

The decoder is also divided into four levels, corresponding one-to-one with the encoder levels. One of our major innovations is incorporating three levels of skip connections (Upsampling skip, Downsampling skip, Identity skip) at each level of the decoder, passing the feature from the lower, corresponding, and upper levels of the encoder to the decoder, respectively, for feature concatenation. This allows the capture of both more global (lower level) and finer (upper level) abstract information.

During the bottom-up process, the DMFF module dynamically fuses the concatenated features from the encoder with the upsampled features from the deeper decoder levels. The resulting feature is passed to the DDLK module for further dynamic feature extraction and attention enhancement, finally being passed to the deeper levels of the decoder. At each level, the feature map is upsampled to twice its size, and ultimately, the final output is produced at the input size.

/word/media/image3.jpeg

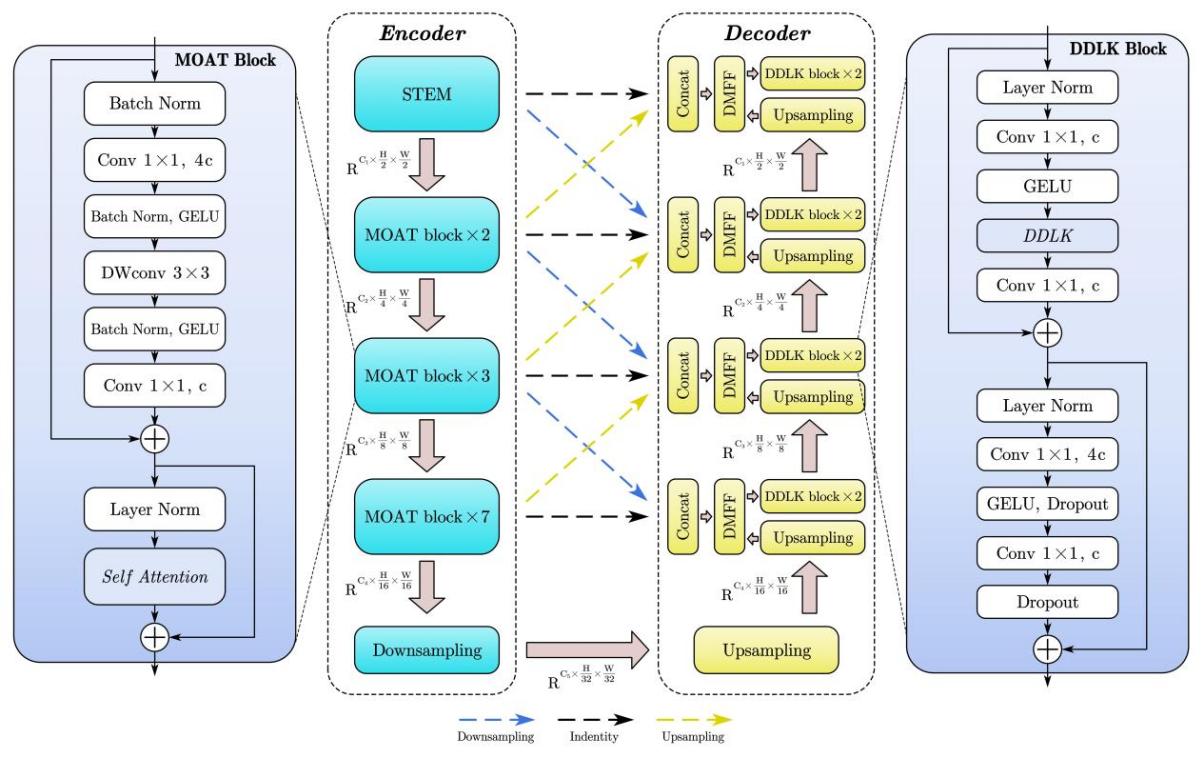

Figure 3. Overall Architecture

3. Experiment

3.1. Datasets

Our experiments primarily utilize the publicly available ISIC (International Skin Imaging Collaboration) 2018 dataset. The ISIC 2018 dataset is widely used for skin lesion medical image analysis. The segmentation task contains 2,594 images for the training set, 100 images for the validation set, and 1,000 images for the test set, with lesion labels annotated by experts. To enrich data and enhance the robustness of the model, we performed data augmentation: each image was randomly subjected to horizontal flipping, vertical flipping, rotation, scaling, translation, color jittering, and advanced blurring, expanding the training set to three times its original size, resulting in nearly 7,800 images. All input images were resized to a dimension of \( 448×448 \) .

3.2. Details

We use the cross-entropy function as the loss function, adopt the Adam algorithm as the optimizer, set the learning rate to \( 0.0001 \) , batch size to \( 4 \) , and trained for 200 epochs. The model training was conducted on a GPU platform with NVIDIA RTX 3090s.

3.3. Results

We tested the trained model on the test set containing 1,000 images to evaluate the model's performance and compared it with existing models ,as shown in Table 1. To access the accuracy of the segmentation results, we used Pixel Accuracy(Acc), Intersection over Union(IoU), and Dice Coefficient(Dice) as evaluation metrics.

Table 1. Comparison of eleven existing models

IoU

Dice

Acc

UNet

78.14

86.28

91.92

UNet++

79.61

87.27

92.13

Attention-UNet

79.61

87.42

92.74

UTNet

78.50

86.29

92.16

SegFormer

79.96

87.48

92.72

Swin-Unet

79.74

87.02

92.19

UNext

77.36

85.63

91.75

MALUNet

79.73

87.59

92.53

UCTransNet

79.67

87.19

92.46

DCSAU-Net

79.00

86.80

92.12

EGE-UNet

78.45

86.12

92.05

Average

79.07

86.83

92.25

DMDLK-Net

79.65

87.05

94.44

Our DMDLK-Net achieved the best performance in the Acc, significantly surpassing the other eleven models in the comparison experiments. Our model is 1.70% higher than the best-perform model in Acc, with IoU and Dice coefficients 0.58% and 0.22% higher than the average performance of these existing models, respectively.

Additionally, to visually demonstrate the effectiveness of our model, Figure 4 shows several representative segmentation examples on the ISIC-2018 test set, including the original image, ground truth, and the segmentation results of DMDLK-Net. Our model accurately delineates the lesion boundaries and details, highlighting its practical value in clinical applications.

The results demonstrate that our method has advantages in handling various skin disease lesion features and complex texture information. The introduction of deformable large kernels in the DDLK module enables more flexible and effective extraction of lesion features, significantly enhancing the accuracy of contour localization and edge delineation. The DMFF module, through multi-scale attention mechanisms, effectively integrates different levels of features, improving the representation capabilities and generalization performance of the model.

/word/media/image4.jpeg

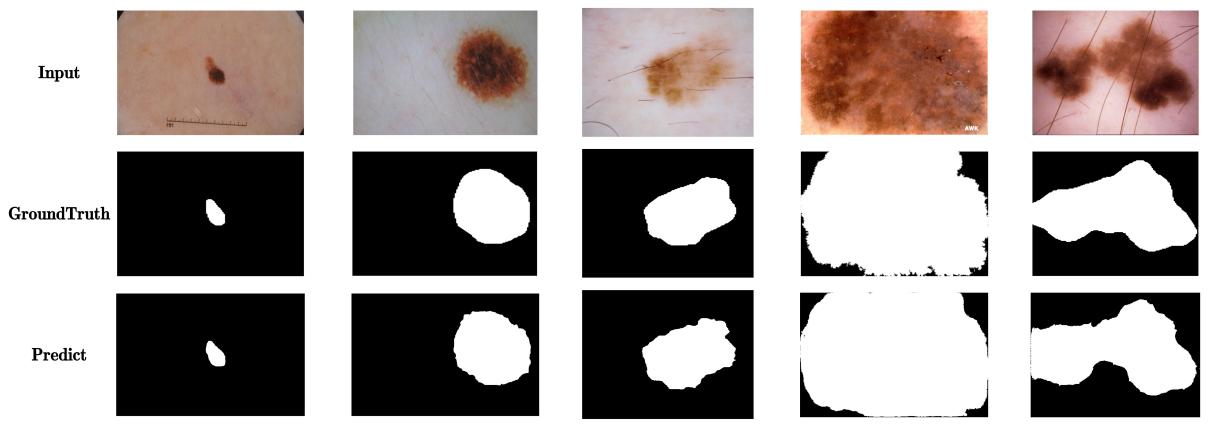

Figure 4. Visual display of the segmentation effect of DMDLK-Net

4. Conclusion

In this paper, we introduced DMDLK-Net, a novel network architecture designed to improve the segmentation of skin disease images by addressing the inherent challenges posed by the diversity and complexity of skin lesions. Our approach leverages the Dynamic Deformable Large Kernel (DDLK) module for flexible and accurate feature extraction and the Dynamic Multi-Scale Feature Fusion (DMFF) module for effective integration of multi-scale information. The comprehensive experiments conducted on the ISIC-2018 dataset demonstrate that DMDLK-Net outperforms existing models in Table 1. These results highlight the potential of DMDLK-Net to enhance clinical diagnostics by providing precise lesion segmentation. Future work will explore the extension of our network to other types of medical image segmentation tasks and further optimize the model for real-time applications. Additionally, integrating more advanced attention mechanisms and exploring the benefits of self-supervised learning could further enhance the performance and generalization capabilities.
