1. Introduction

Though the theoretical foundation for their genres, canonical rules in music composition issue substantial challenges for composers' musical imagination. Inspired by David Cope, a precedent in music AI, I intend to incorporate machine learning into music composition to relieve mechanical labor, such as writing countermelody for the cantus firmus and embracing artistic creativity. Excited by the potentiality of algorithmic composition, I am driven to develop music software embedded with machine learning algorithms that enables collaboration between computer programs and composers, the interaction design I envision as the future of computer-generated music [1].

Traditional machine learning methods like regression models could complete such composition procedures. Meanwhile, as the deep learning technique developed in the 21st century, many scientists used the algorithmic capacity of deep learning architectures to train programs to learn musical styles from a massive number of classical compositions [2]. In my research, I investigated the utility of traditional machine learning and deep learning in automatic music generation. Both have their advantages and drawbacks, which I will discuss in detail in the conclusion paragraphs.

2. Literature Review

A new research topic in the 21st century, the field of automatic music generations, has its state-of-the-art methods distributed in four categorizations: Convolutional Neural Networks (CNN), Recurrent Neural Networks (RNN), Variational Autoencoders (VAEs), and the Regression Model. First, in the category of the RNN model, researcher Skuli experimented with LSTMS to generate single-instruments music in 2017 [3]. Following up on this scholarship, scientist Nelson, in 2020, used LSTM to compose lo-fi music, a music quality that treated elements as imperfections in the context of a recording. Second, for CNN Model, Researcher Yang (2017) created MidiNet, which generates multi-instrument music sequences [4]. In the same year, Scientist Dong (2017) used MuseGAN, which utilizes multiple generators to achieve synthetic multi-instrument music that respects dependencies between instruments [5]. Then, researcher Tham (2021) introduced a new VAE-based architecture to generate novel musical samples [6]. Finally, musician Chen employed Random Forest Regression Model for accessible music generation in 2020 [7].

3. Methods

3.1. Introduction of dataset

First, the dataset for all model training is only constituted of instrumental classical music from the Baroque Period, Classical Period, or Romantic Period. For more details, I used the MusicNet dataset from Kaggle, posted by Dr. Sara Gomes [8]. MusicNet dataset consists of 330 freely licensed classical music recordings from over 1 million annotated labels. Those labels recorded the precise time of each note in every recording, the instrument that plays each note, and the note's position in the metrical structure of the composition. Moreover, there are three sub-datasets in the MusicNet dataset: the data with the general information of the databases (metadata, Table 1), the test data with information per music (test data, Table 2), and the train data with information per music (train data, Table 3). Such divisions facilitate the data pre-processing process and help us classify datasets for model training.

Table 1. Meta Data.

Table 2. Test Data.

Table 3. Train Data.

3.2. Data Analysis

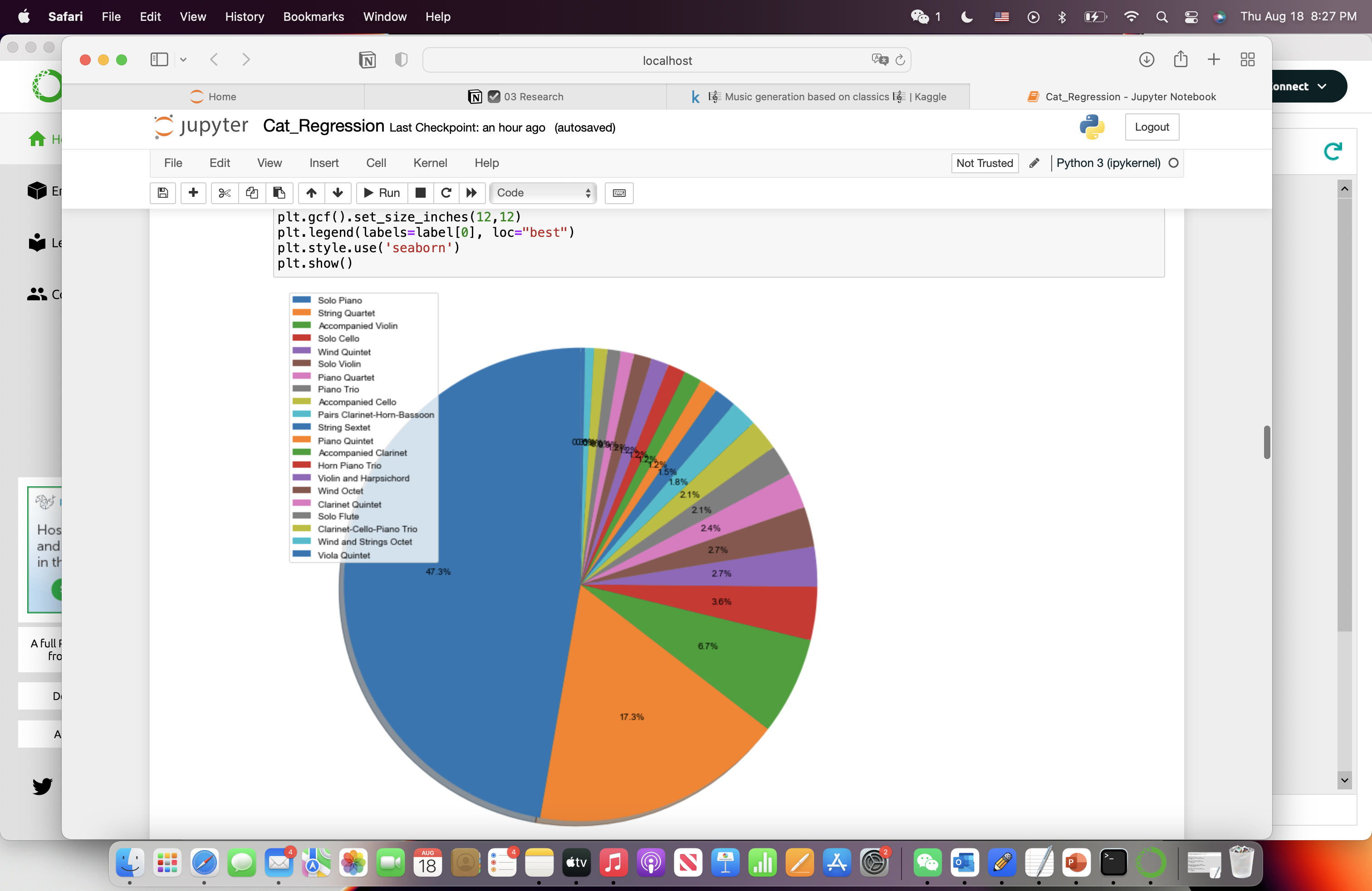

Second, to better understand the data, I investigated Dr. Gomes’s categorization on MusicNet. I focused on the ensemble and composer of each composition work. As a result, in the ensemble analysis (Figure 1), the top three popular ensemble types are: solo piano (47.3%), string quartet (17.3%), and accompanied violin (6.7%). In the composer analysis (Figure 2), the top three famous composers are: Beethoven (47.6%), Bach composed (20%), and Schubert composed (9%). Based on the analysis, I will select works composed by these top three composers in the type of solo piano and accompanied violin. Since string quartet composition is not solo music, this type might raise confusion in our final model training. Therefore, the string quartet compositions are removed from our dataset.

3.3. Model Architecture Introduction

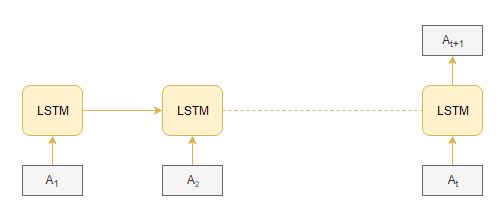

Then, I investigated two model architectures: the LSTM (Long Short-term Memory) Model from deep learning implemented by Scientist Aravind Pai and the Regression Model by Dr. Sara Gomes. Created by Hochreiter and Schmidhuber in 1997, LSTM Model is a variant of RNN that captures the long-term dependences of the input sequences. At each time step, the Long Short Term Memory cell (LSTM cell) receives an input of an amplitude value. Next, the LSTM cell calculates the undercover vector, which it then passes onto the subsequent timesteps (Figure 3). In such a way, the LSTM model can hold on to connecting the information as the gap between relevant information grows.

Then, for the implementation of the Regression Model, Dr. Sara Gomes selected Decision Tree Regressor and Linear Regressor. A decision tree implements regression and classification architectures organized in the form of tree structures. Such a model breaks down a database into smaller subsets while gradually constructing a linked decision tree [9]. Next, a more basic linear regression model fits a linear function or surface that minimizes the differences between the actual outputs and the predictions. I aim to compare the efficiency and utility of deep learning and traditional machine learning in automatic music generation with these two models.

4. Implementations

4.1. Data Preprocessing

The classical music dataset was preprocessed separately to better train the model. First, for the LSTM model, Pai prepared new musical files that only have frequent top notes, which took a minimalist approach to refine the dataset. Later, to prepare the input-output series for the LSTM method, Pai sequentialized music notes with a unique integer and prepared the "integer-sequences" for input and output data. Second, for Regression Model, Dr. Gomes worked with the whole dataset and selected "the composer," "duration," "the note," "start and end time," and "start and end beat" as relevant features in predictions. Finally, based on the results of previous data analysis, Dr. Gomes prepared the data to perform separate predictions on solo piano. They accompanied violin, the two most popular ensemble genres from the dataset.

4.2. Model Training

For the LSTM Model, Scientist Pai trained the model using a cluster of 128 for 50 epochs. The currently hidden vector is computed based on the current input and formerly hidden vector ht-1 at timestep ht. This way, the LSTM Model grabs the sequential information presented in the input sequence. After successful model training, Pai converted the predictions into MIDI files using the music21 library designed for digital music analysis by a team from MIT. Finally, with the assistance of the music21 library, Pai created note and chord objects founded on the LSTM model's predictions.

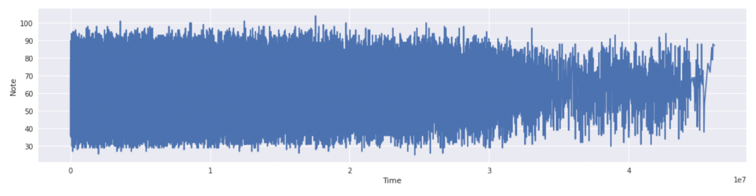

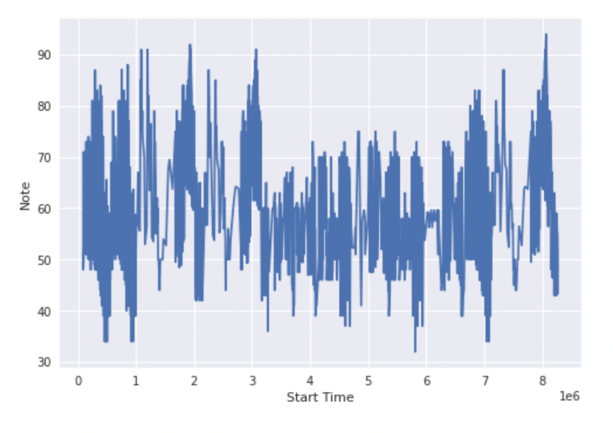

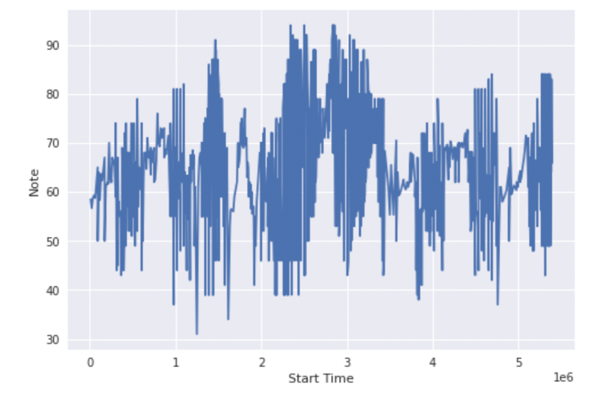

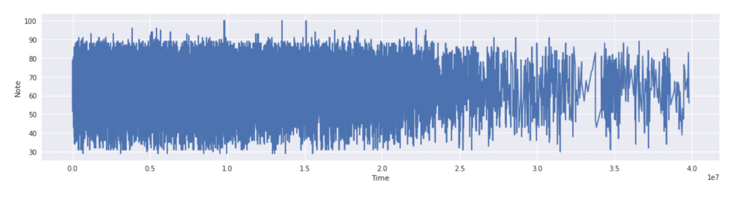

Next, for the regression model, Dr. Sara Gomes implemented the regression model first on the entire dataset and then on two random individual instances (#1759 music and #2628 music) to predict music by solo piano and violin, respectively. In both circumstances, the decision tree models tend to give higher accuracy in their training results. Figures 4 (solo piano) and 5 (violin) show the predicted notes versus start time for the entire data testing set. Figures 6 (#1759 music) and 7 (#2628 music) show the results run on individual instances.

4.3. Model Evaluation

Dr. Gomes used R-Squared Metrics to evaluate the model accuracy. R-squared is a statistical standard representing the goodness of fit for regression models. The closer the r-square value to 1, the ideal value, the fitter the regression model is [10]. In Dr. Gomes's research, as R-Squared Metrics (Table 4) suggested, both regressors perform poorly on the entire dataset, with R2 values ranging from around 0.01 to 0.22. However, both regressors perform well on individual cases with an average R2 of around 0.52 to 0.80. For LSTM Model, I did not use evaluation metrics to scale the model since the predictions gave auditory music results, and it is hard to standardize sensual enjoyment numerically. However, in my view, the model performs well in generating solo piano music, consisting of well-reasoned melodies despite its simplistic structures.

Table 4. R-Squared Metrics.

5. Conclusion

In short, the regression model is easier to evaluate than the LSTM Model. More specifically, for the regression model, Tree Regression presents better fits than Linear Regression, and Models were fitted to single music and showed promising results. However, the Regression model is less efficient in translating mathematical prediction into auditory results (the actual music) than the LTSM Model. To improve both models, future researchers can either increase the size of the dataset or refine the model itself. An increment in the training data size raises the efficiency of deep learning models while refining the pre-trained model helps to build a more robust system that gives more comprehensive predictions.
